Electric Forklift 1ton,1.5ton,2ton,2.5ton,3ton Fork Lift Truck Hydraulic Stacker Trucks

Tavol Electric Forklift with more than 20 years production and export experience, loading capacity from 1ton to 3ton,standard lifting height is 3 meters duplex mast,also have 3 meters full free mast ,4 meters to 6 meters triplex mast for you choose.
Our standard battery is lead-acid battery,optional maintenance-free battery and lithium batteries. Standard battery after full charging can work continuously for 3-4 hours ,we also can customized battery capacity according to your working time.
Our electric forklift with fast delivery time(5-7 working days),accept OEM and ODM service.For more details ,welcome contact us.
max .load :
Lift height:
Load Capacity:
Color:
Availability:
Quantity:
  • FB

  • TAVOL

  • 84271090

Product Description

PRODUCT INFORMATION

Electric Forklift 1ton,1.5ton,2ton,2.5ton,3ton Fork Lift Truck Hydraulic Stacker Trucks

24 wu  9_副本

Electric forklifts are a quiet, environmentally friendly means of handling a wide range of unit loads including pallets,pallet boxes and stillages, giving you a comprehensive choice for any application.

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.


PRODUCT CONFIGURATION

Durable Battery
Work long time and meet different conditions
Compound Chain
Strong pull and easy lifting
Solid Tire
Adopt different roads and working environment.
Hydraulic Steering
Easy to operation
Date Display
  See driving data clearly
Electric Switch
Convenient to turn the lights on and off
Anti-Fatigue Seat.
Feel comfortable when driving
LED Light
Save electricity, longer service life.
Safe Overhead Guard
Protect the driver


PRODUCT SPECIFICATIONS


Model
FB10
FB15
FB20
FB25

Rated Loading Capacity(kg)
1000
1500
2000
2500

Load center(mm)
400
500
500
500

Drive Form
Electric
Electric
Electric
Electric

Tyre type
Solid
Solid
Solid
Solid

Fork Lifting Height(mm)
3000
3000
3000
3000

Free lifting height(mm)
70
60
60
80

Mast Tilt Angle
 (Forward and Backward)(°)
5/10
5/10
5/10
6/12

Wheel Base(mm)
1260
1450
1450
1560

Wheel distance
Front (mm)
843
920
920
1008

Back (mm)
869
928
928
981

Overall dimensions
Length (excluding Fork) (mm)
1852
2160
2160
2360

Width(mm)
1000
1100
1100
1160

Overhead guard height(mm)
1920
2040
2040
2190

Height of mast lowered
1955
1933
1933
2030

Seat height
835
1036
1036
1154
Min. Turning Radius(mm)
1550
1650
1650
2180

Minimum right-angle stacking channel width(mm)
2350
2450
2450
2950

Min. Ground Clearance(mm)
106
106
106
122

Fork specifications(mm)
32*100*1070
32*100*1070
32*100*1070
32*100*1070

Distance between forks(mm)
200-944
200-1062
200-1063
244-1149

Cylinder bore(mm)
45
45
45
50

Gear pump displacement(ml/r)
14
14
14
16

Tyre model
Front (mm)
16x9-18
18x7-10
18x7-10
23x10-12

Rear (mm)
15x4 1/2-18
4.00-8
4.00-8
18x7-10

Performance parameter
Driving Speed (Empty/Full load) (km/h)
12/12
12/12
12/12
12/12

Lifting Speed (Empty/Full load) (mm/h)
250/300
250/300
250/300
250/300

Maximum climbing angle(%)
10/15
10/15
10/15
10/15

Motor
Driving Motor(kw)
3.7
5
6
8

Maximum speed of driving motor(rad/min)
3800
3500
3500
3400

Oil pump motor(kw)
3
4
5
9

Maximum speed of oil pump motor (rad/min)
2000
2000
2000
2000

Battery
Voltage(V)
60
72
72
72

Capacity(Ah)
120(optional)
140(optional)
160(optional)
180(optional)

Charger
Input voltage(V)
220/380 (optional)
220/380 (optional)
220/380 (optional)
     220/380      (optional)

Current(A)
20
25
30
30

Charging time(h)
8-10
8-10
8-10
8-10

Electric control current(V/A)
60/350
72/350
72/450
72/550

Steering system
Hydraulic
Hydraulic
Hydraulic
Hydraulic

PACKING&SHIPPING

One set is packed in plywood case,delivered by LCL.
Two sets and more forklifts are packed in one container,all wheels fixed with
wooden corner block, tightened with frap rope,et

COMPANY PROFILE

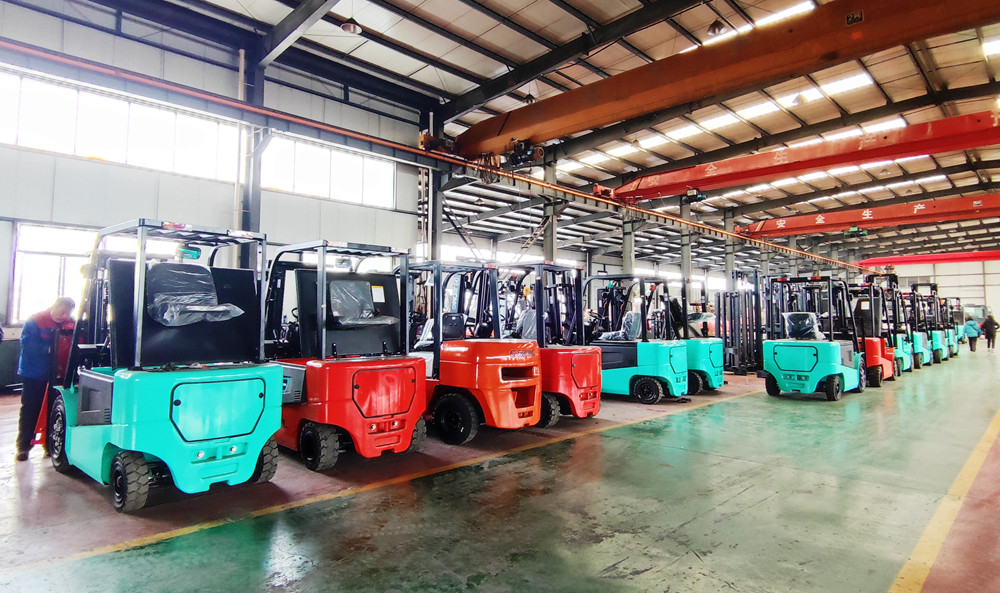

18 wu What can we do for you?
1. We are manufacture,also group company,which has more than 20 years export experience.
2.All machines sold must be tested 3-5 times before shipment,100% quality assurance.
3. 7*24 hours technical support by email,telephone or video online.
4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
5.24 months warranty time.


FAQ

1.Q:What your term of payment?

A:We accept TT, Letter of credit, Online bank payment, Support Alibaba trade insurance etc.

2.Q:How about your delivery time?

A: Lead time 5-10 days for in stock, If need customized, it will take about 20 working days.

3.Q:What is the MOQ?

A: 1 set is okay. More quantity wit nice discount.

4.Q:How long is your product warranty?

A:The product warranty period is 24 months.

5.Q:What should we do if there have quality problems?

A:During warranty period we will provide free spare parts for free.
