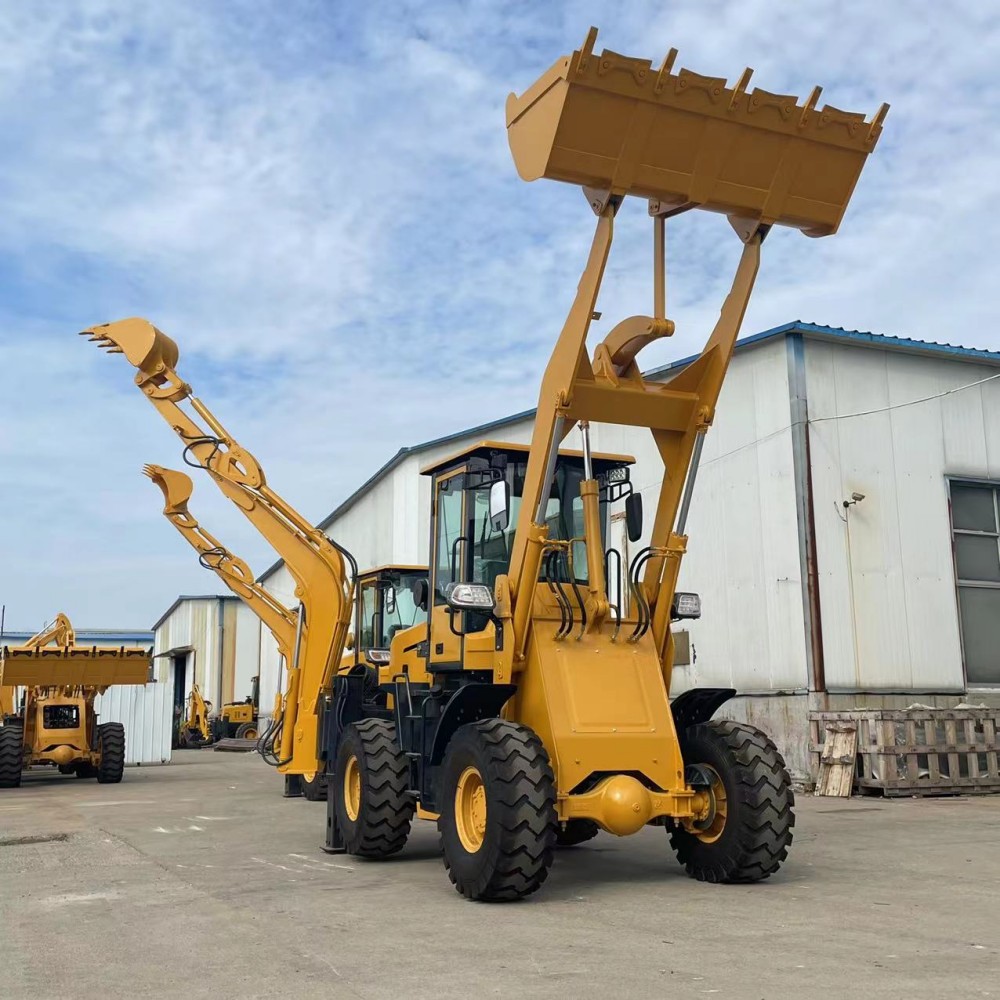

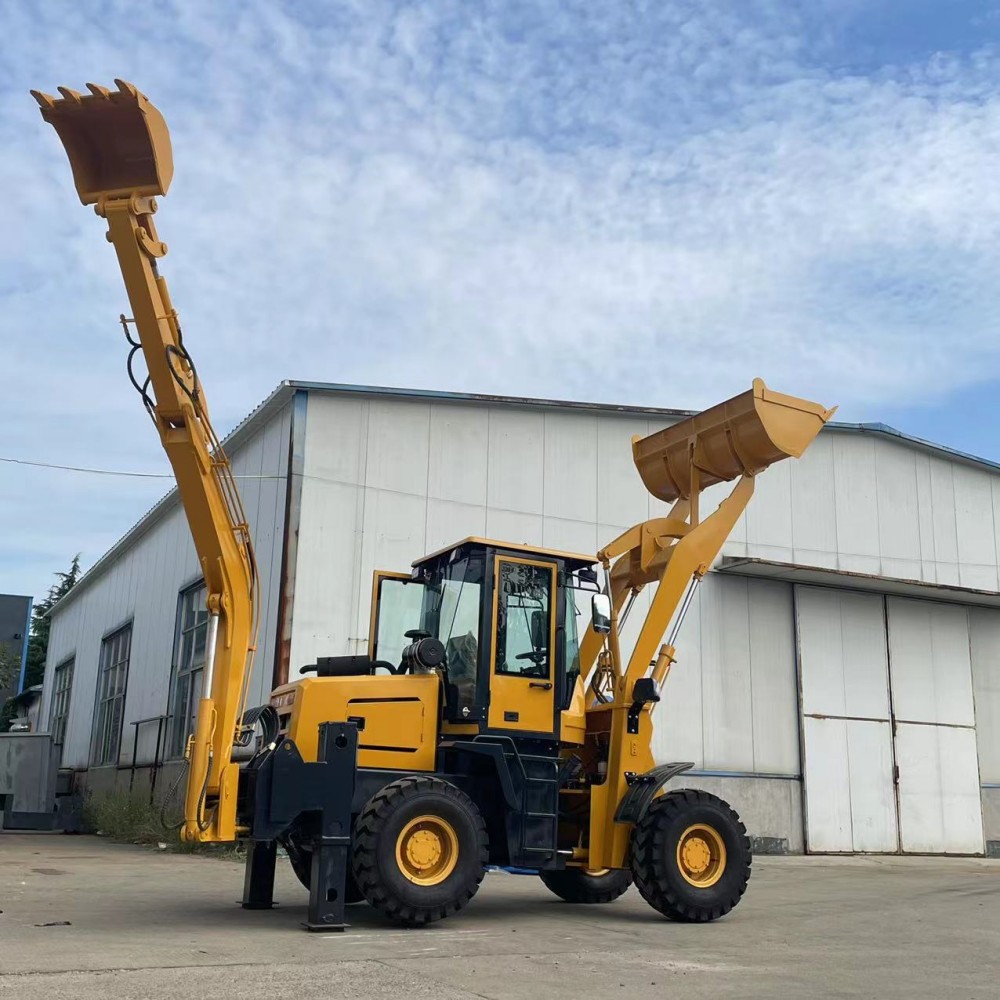

TAVOL TA 15-26 Backhoe Wheel Loader
TAVOL Brand
8429510000
Product Description
1.8 t lifting capacity, 4.8 t working weight, 5800 mm long — small enough to get through a 2.3 m gateway and still dig 2700 mm with the backhoe. The machine for mixed farm and municipal work.

TAVOL TA15-26 — 1.8 t mini backhoe loader
|
| ||||
|
|
Why this one
| One chassis, twenty models. The same frame and axle family runs from 1 t to 6 t, so the loader you learn on is the loader the next size up feels like. | |
| Engine and gearbox you can choose. China-made, Cummins, Deutz or Cat power; mechanical or ZF electronic gearbox — quoted against your market and budget. | |
| Sixteen months, not twelve. Warranty longer than the industry standard, with quick-wear parts from the same factory that built the machine. |
Specification
Performance
| Overall dimensions L×W×H | 5800 × 1850 × 2700 mm |
| Wheel base | 2315 mm |
| Min. ground clearance | 220 mm |
| Breakout force | 36 kN |
| Bucket dumping height | 3300 mm |
| Bucket dumping distance | 800 mm |
| Max. digging depth | 2700 mm |
| Backhoe capacity | 0.15 m³ |
| Swing angle of excavator grab | 180° |
| Max. pulling force | 39 kN |
Engine
| Model | 490 |
| Type | Diesel, 4-stroke |
| Rated power | 55 kW |
| Rated speed | 2400 r/min |
| Max. torque | 300 N·m |
Transmission & steering
| Gearbox | Hydrodynamic, F3/R3 |
| Max. speed | 0–26 km/h |
| Steering angle / turning radius | 32° / 3500 mm |
| Tyres | 23.5-16 |
16-month warranty, longer than the industry standard · Specifications are taken from the Tavol loader catalogue and are confirmed per order.
