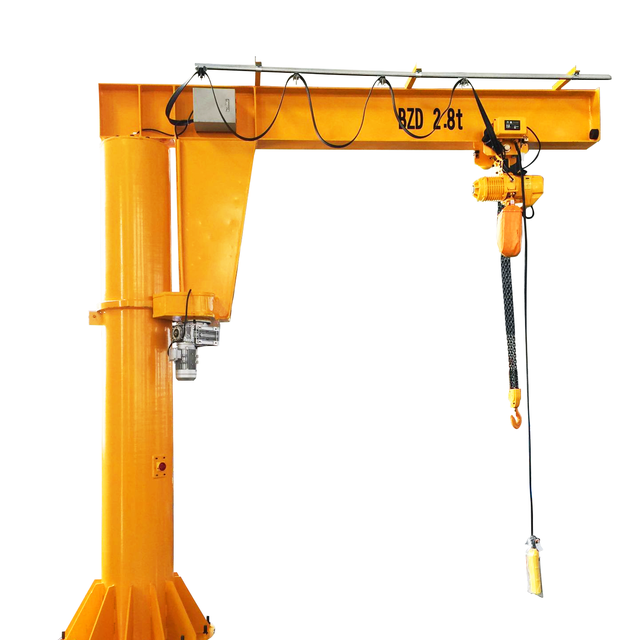

Jib crane is composed of a column, a slewing arm slewing drive device and an electric hoist.

The lower end of the column is fixed on the concrete foundation by anchor bolts.

The cycloidal pin wheel deceleration device drives the cantilever to rotate.

The electric hoist is on the cantilever.

The I-beam is used to run left and right in a straight line and lift heavy objects.

The crane jib is a hollow steel structure, with light weight, large span, large lifting weight,

economical and durable. The built-in walking mechanism adopts special engineering plastic

walking wheels with rolling bearings, with low friction and brisk walking.

The small structure size is especially beneficial to improve the hook stroke.

Pictures Reference:

Crane Structure:

1. Ergonomic design;

2. Increase worker productivity;

3. Reduce workplace injuries;

4. Improve safety.

According to hoist type, it separate with two type:

BZ Jib Crane with wire rope hoist

BZ jib crane with electric chain hoist.

Jib Crane Application:

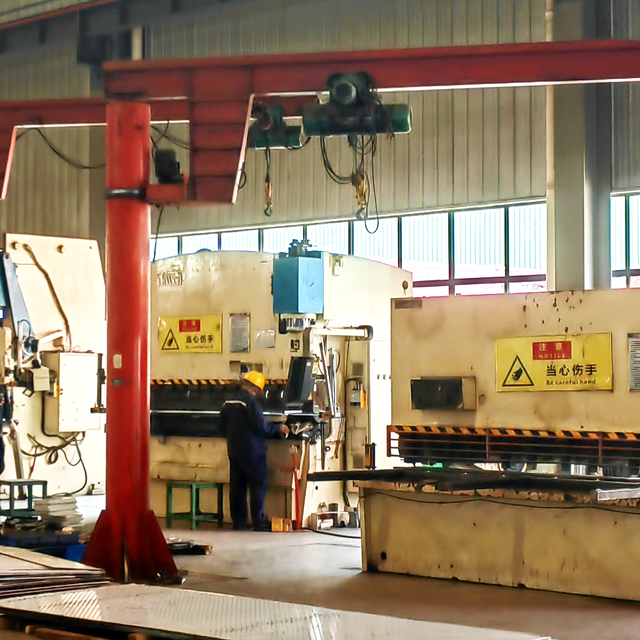

BZ model jib crane can be installed virtually anywhere including indoors or outdoors.

Freestanding jib systems can be used underneath large bridge crane systems, or in open areas where they can support individual work cells.

They can be used outdoors at marinas or loading docks, and indoors for machining and assembly operations where multiple jibs can be used in conjunction for staged operation.

Oveseas Project:

Tavol Brand Jib Cranes Advantages:

01- Cost-Saving Low Headroom Design: Specialized designs reduce the required factory construction height by 10%–15%. This effectively lowers building costs—"saving on rent by investing in the right machine."

02- Robotic Precision Welding: Features "perfect seams" produced by industrial robots. We guarantee 20 years without structural cracking, ensuring the highest level of lifting safety.

03- Labor-Saving Intelligence: Smart operating systems allow "one operator to do the work of three," drastically cutting labor costs and optimizing warehouse turnover efficiency.

Global Service & Certified Quality：

01- Certified Compliance: All Tavol equipment is fully CE and ISO certified, meeting the most stringent international safety and performance standards. We ensure your machinery is fully compliant with local regulations in over 120 countries, providing a "passport" for global entry.

02- Global Support Network: Our dedicated service network spans 64 countries, offering professional local technical support, troubleshooting, and maintenance services. You are never alone—wherever your project is, Tavol is there.

03- Rapid Spare Parts Supply: We maintain a comprehensive global supply chain to ensure that critical spare parts are delivered to your site within 48-72 hours, minimizing downtime and maximizing your operational productivity.
