Product Description

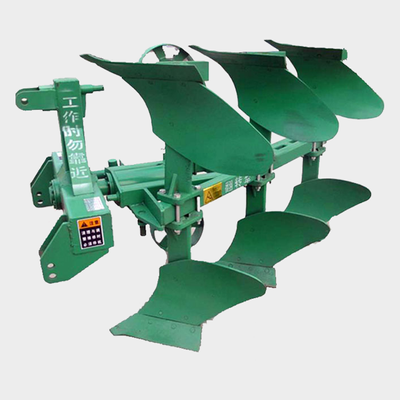

The machine is suitable for loam, or sandy loam soils in the cultivated area. it is compact in construction, and versatile in application . After plowing,the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
| Model | No. of blades | Single plowbody working width(mm) | Working width(m) | Working depth(mm) | Weight(kg) | Matched power(hp) |
| 1L-220 | 2 | 200 | 0.4 | 200~250 | 64 | 12 |
| 1L-320 | 3 | 200 | 0.6 | 200~250 | 100 | 25~30 |
| 1L-420 | 4 | 200 | 0.8 | 200~250 | 130 | 30 |
| 1L-520 | 5 | 200 | 1 | 200~250 | 170 | 50 |
| 1L-225 | 2 | 250 | 0.5 | 200~250 | 125 | 25 |
| 1L-325 | 3 | 250 | 0.75 | 200~250 | 180 | 35 |
| 1L-425 | 4 | 250 | 1 | 200~250 | 220 | 50 |
| 1L-525 | 5 | 250 | 1.25 | 200~250 | 335 | 65 |
| 1l-230 | 2 | 300 | 0.6 | 220~270 | 197 | 35 |
| 1L-330 | 3 | 300 | 0.9 | 220~270 | 248 | 50 |
| 1L-430 | 4 | 300 | 1.2 | 220~270 | 244 | 65 |
| 1L-335 | 3 | 350 | 1.05 | 270~300 | 380 | 55~65 |
| 1L-435 | 4 | 350 | 1.4 | 270~300 | 460 | 65~80 |
| 1L-535 | 5 | 350 | 1.75 | 270~300 | 580 | 80~120 |
| 1 L -635 | 6 | 350 | 2.1 | 270~300 | 613 | 100~120 |
