CPC/CPCD
TAVOL
84272090
Product Description
3.5 Ton Diesel Forklift CPCD35 - Tavol Group
The CPCD35 3.5-ton diesel forklift is the dependable middle ground for operations that need more muscle than a 3-ton but don't yet need a 4-ton: a powerful diesel engine, solid construction, and full hydraulic control keep heavy pallets moving through the busiest shifts. Low fuel consumption and easy-service design mean lower running costs, and the robust build stands up to continuous heavy-duty cycles. You get 3.5 tons of lifting capacity that works as hard as your team — reliable, economical, and ready for the next shift.

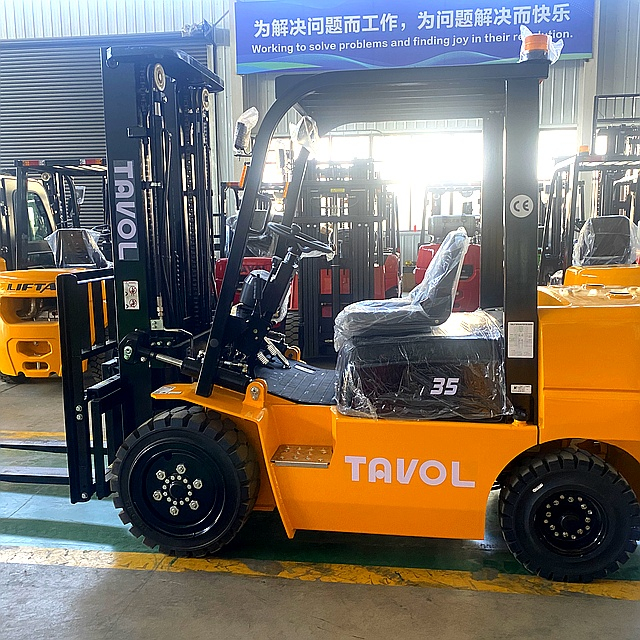

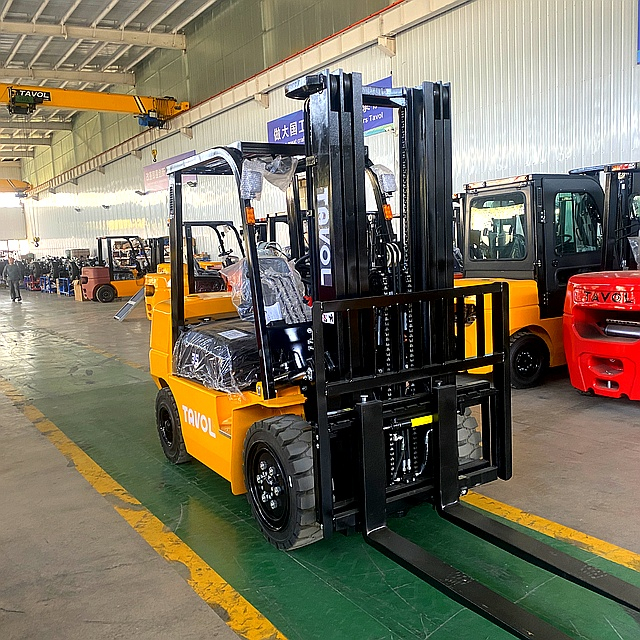

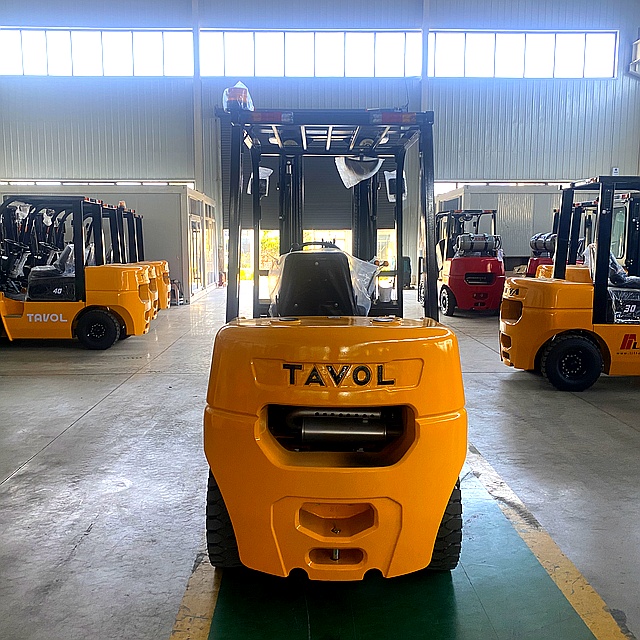

Picture Reference:

| Model | CPC32/CPCD32 | CPC36/CPCD36 | |
| Rated Load(kg) | 3200 | 3600 | |
| Load center(mm) | 500 | 500 | |
| Power unit | Diesel | Diesel | |
| Lifting speed(no load/full)mm/h | 505/475 | 505/450 | |
| Max traveling(full/no load)km/h | 18/20 | 18/20 | |
| Max lifting height (mm) | 3000 | 3000 | |
| Tilt range | 6/12 | 6/12 | |
| Min.turning radius(mm) | 2530 | 2540 | |
| Min.ground clearance(mm) | 135 | 135 | |
| Overall size | Length(with fork)mm | 3970 | 4000 |
| Width(mm) | 1230 | 1230 | |
| Height(mast retract) | 2110 | 2110 | |
| Height(mast extened) | 4270 | 4270 | |
| Height from ground to overhead guard(mm) | 2105 | 2105 | |
| Front overhang(mm) | 465 | 465 | |
| Wheelbase(mm) | 1775 | 1775 | |
| Wheel distance | front (mm) | 1000 | 1000 |
| back(mm) | 970 | 970 | |
| Tire | Front tire | 28*9-15 | 28*9-15 |
| Rear tire | 6.50-10 | 6.50-10 | |
| Self weight(kg) | 4250/4290 | 4660/4700 | |
| Fork width(mm) | 122 | 122 | |
| Fork thickness(mm) | 45 | 45 | |
| Back rest height(mm) | 1225 | 1225 | |
| Standard fork length(mm) | 1220 | 1220 | |
| Motor | Rated ourput(kw) | 36.8 | 36.8 |
| Rated torque(nm) | 156 | 156 | |
| Transmission | Mechanical/Hydraulic | Mechanical/Hydraulic | |
Why Choose Tavol Forklift ?
01- Unrivaled Power: 27% Gradeability Engineered to conquer steep slopes that stop other electric forklifts. We combine zero emissions with internal combustion-level climbing performance.
02- Global Compliance: Multi-Engine Options From high-value brands to Isuzu, Mitsubishi, and Kubota (Euro V/EPA). We provide 100% legal compliance and easy maintenance for any country.
03- Risk-Free Investment: 24-Month Warranty Backed by Stock Code 307262. With our 5-part transparent quotation and 2-year warranty, your capital is secure and your asset maintains high resale value.
Global Service & Certified Quality:
01- Certified Compliance: All Tavol equipment is fully CE and ISO certified, meeting the most stringent international safety and performance standards. We ensure your machinery is fully compliant with local regulations in over 120 countries, providing a "passport" for global entry.
02- Global Support Network: Our dedicated service network spans 64 countries, offering professional local technical support, troubleshooting, and maintenance services. You are never alone—wherever your project is, Tavol is there.
03- Rapid Spare Parts Supply: We maintain a comprehensive global supply chain to ensure that critical spare parts are delivered to your site within 48-72 hours, minimizing downtime and maximizing your operational productivity.
