240HP 4WD Heavy Duty Tractor TL2404 - Tavol Group

2040HP 4WD Heavy Duty Tractor TL2404 - Tavol Group

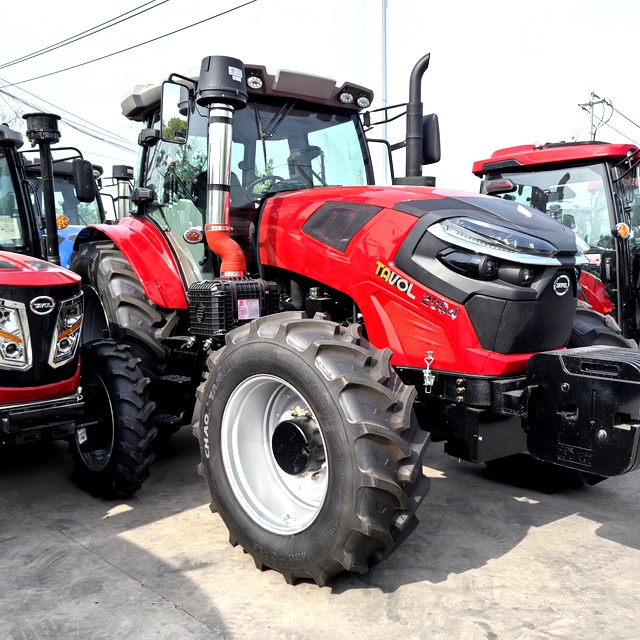

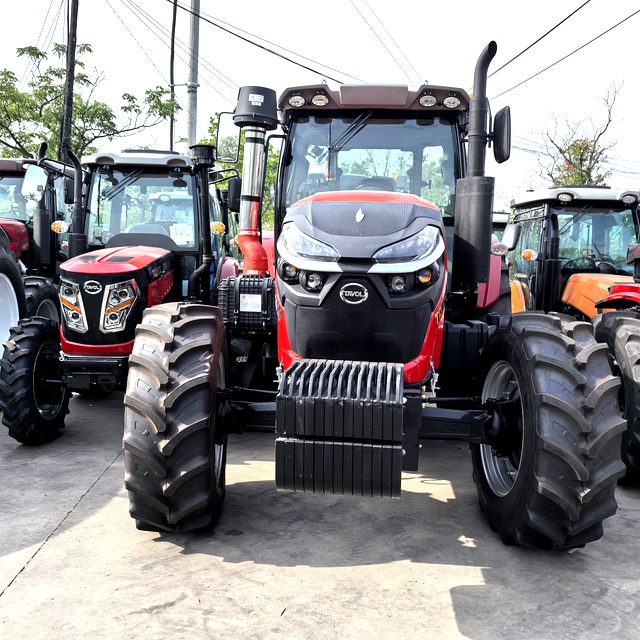

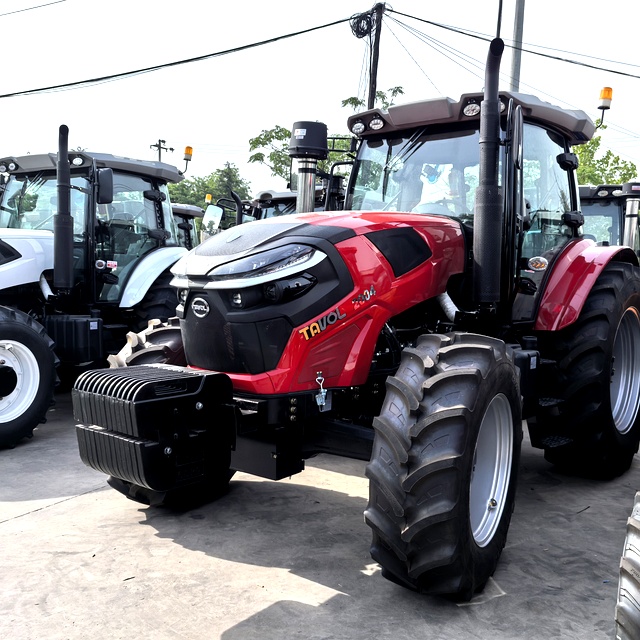

Picture Reference:

Main Specifications:
1.High-quality steel fuselage, reasonable frame design, thick steel plate, strong and durable, reduce the vibration generated by the engine, and extend the life of the machine
2.Four-wheel drive, strong power, efficient work, easy to pass any field
3.The front axle with central oil cylinder, strong bearing capacity, hydraulic steering, flexible and light
4.Luxurious seats increase work comfort and reduce fatigue
5.The rear wheel can be adjusted steplessly to adapt to various tasks
6.Simple operation, automobile-style operation panel, flexible response, double-acting clutch, multi-function instrument
7.It is easy to replace the accessories, and it is common to all wheeled tractors and agricultural machinery according to the suspension.

Main Parameters

Model 2404

Engine power 176.4 kW (240 hp)

Type 4x4

Gross weight (kg) 9200

PTO power (kN) 149.9

Dimensions (mm) 5200×2250×3050

Wheelbase (mm) 2680

Minimum ground clearance (mm) 495

Steering - hydraulic

Forward speed - 42 km / h.

Maximum pulling force 46 kN

Manual differential lock

USB radio

Fan

With counterweights front and rear

Rear wheels double

Air conditioner

Stove

Turning radius:

- Unilateral braking 5.2 ±0.3

- Non-unilateral braking 6.8±0.3

Drive unit:

- Double acting clutch

- Gearbox 16F+16R shuttle shift

Tire:

- front wheels 18.4 R26

- rear wheels 20.8-38

Braking system:

- Service brake Wet, disc, hydrostatic

- Parking brake Independent hand brake

Hydraulic outlet 3 groups

PTO speed rpm 540/1000

Engine type Diesel engine

6 cylinder engine

Environmental class - Euro 5

Starting method Electric

Main filling volume:

- Radiator 25

- Fuel tank 322.8

- Engine oil pan (l) 20

- Transmission oil (l) 60

- Hoist(L) 21

Our Services

One-stop Agricultural Machinery Equipment Program Service:

1.Professional sales-staff will provide you with a one-stop solution for agricultural machinery&equipment services.

2.Provided Guarantee of repair replacement and refund of substandard products Together with tractors, so that you have no worries after purchase.

Perfect after-sales service & system.

Provide services for global agents. Relieve the worries of agents. Better develop overseas markets.

Tavol Tractor Core Advantages

01- Flexible Power Options

Content: Support for top Chinese engine brands (YTO, Weichai, Yuchai, etc.). Choose the "heart" that best fits your local maintenance and parts availability.

02- Heavy-Duty Configuration

Content: Standard AC cabin, 16F+8R shuttle shift, and reversing camera. High-end features are standard at Tavol, ensuring max efficiency and operator comfort.

03- Versatile Field Adaptability

Content: Customizable tire ratios and multi-group hydraulic outputs. Engineered for diverse tasks—from dry land plowing to paddy field management.

Global Service & Certified Quality：

01- Certified Compliance: All Tavol equipment is fully CE and ISO certified, meeting the most stringent international safety and performance standards. We ensure your machinery is fully compliant with local regulations in over 120 countries, providing a "passport" for global entry.

02- Global Support Network: Our dedicated service network spans 64 countries, offering professional local technical support, troubleshooting, and maintenance services. You are never alone—wherever your project is, Tavol is there.

03- Rapid Spare Parts Supply: We maintain a comprehensive global supply chain to ensure that critical spare parts are delivered to your site within 48-72 hours, minimizing downtime and maximizing your operational productivity.
