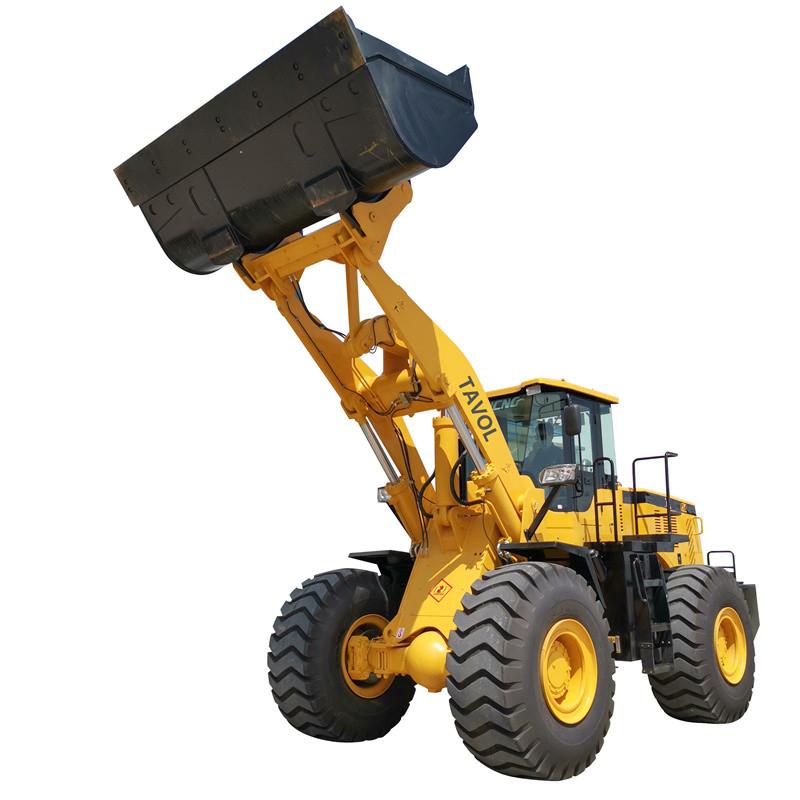

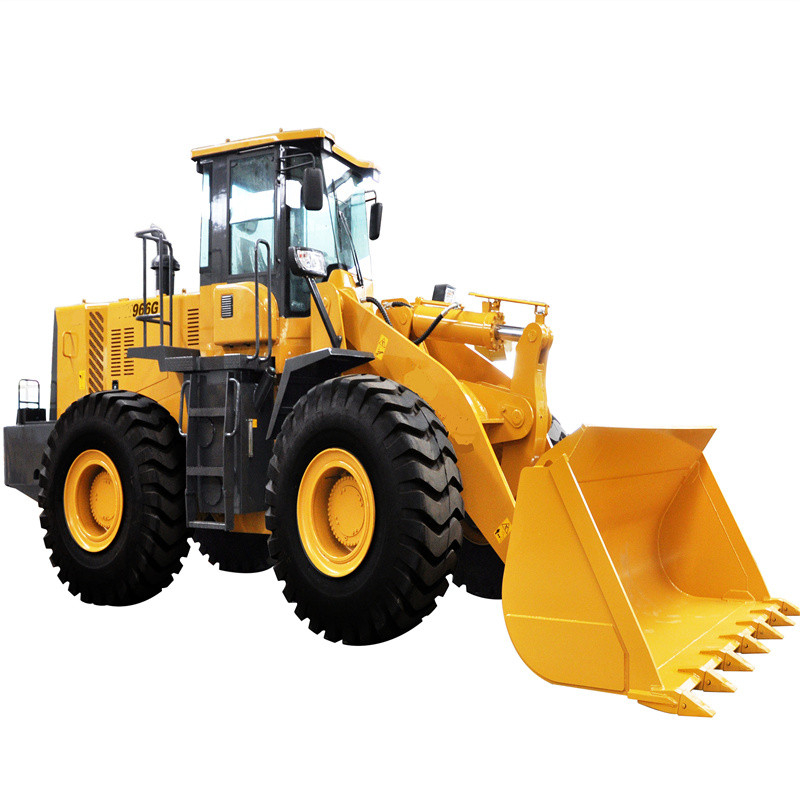

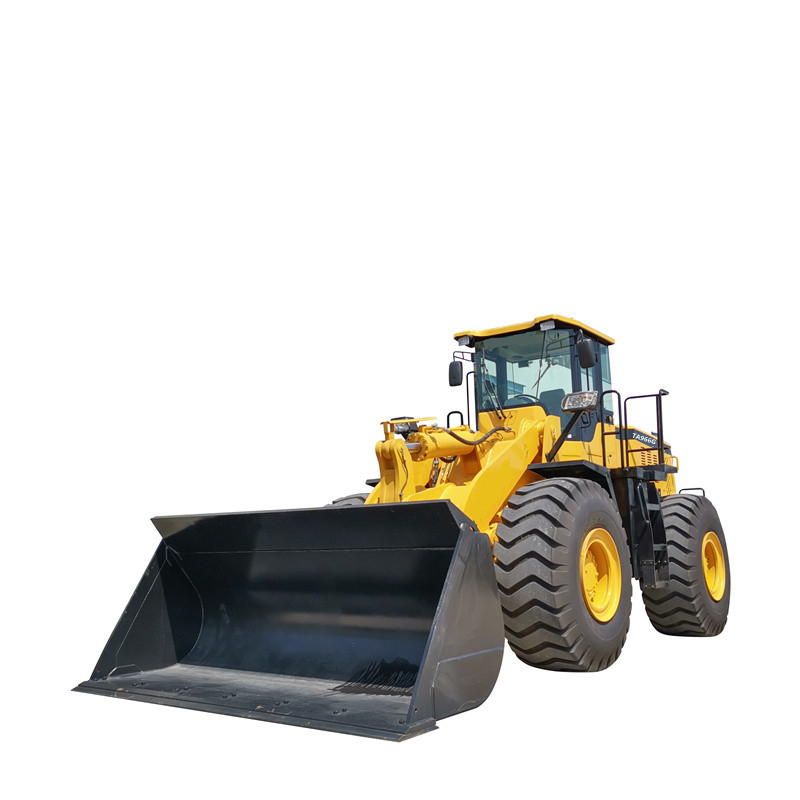

TAVOL TA 966 G Wheel Loader
TAVOL Brand
8429510000
Product Description
175 KW power wheels skid steer loader with 3.5 m3 bucket for construction works in Africa
TAVOL 6 ton Wheel Loader is a kind of earth and stone construction machinery widely used in highway, railway, construction, hydro power, port,mine and other construction projects. , hard soil, etc. for light shovel excavation. It can also carry out bulldozing, lifting and loading and unloading of other materials such as wood by changing different attachments.
Main Specification:
| NO. | Item | Specification | NO. | Item | Specification |
| 1 | Bucket Capacity | 3.5m³ | 10 | Min.Turning Radius(Outside of read wheel) | 6593mm |
| 2 | Rated Load | 6000 Kg | 11 | Steering Angle | 35° |
| 3 | Dumping Height | 3100 mm | 12 | Min.Ground Clearance | 544mm |
| 4 | Dumping Reach | 1216mm | 13 | Wheel Base | 3200mm |
| 5 | Boom Lifting Time | 6.8 S | 14 | Wheel Tread | 2264mm |
| 6 | Max Working Speed | 36km/h | 15 | Rated Power | 175KW/2200 rpm |
| 7 | Max.Breakout Force | 200kN | 16 | Tyre | 26.5-25 |
| 8 | Max. Drawing Force | 180 kN | 17 | Overall Dimensions | 8250*3200*3560 |
| 9 | Max.Grade Ability | 35° | 18 | Operating Weight | 20000 Kg |

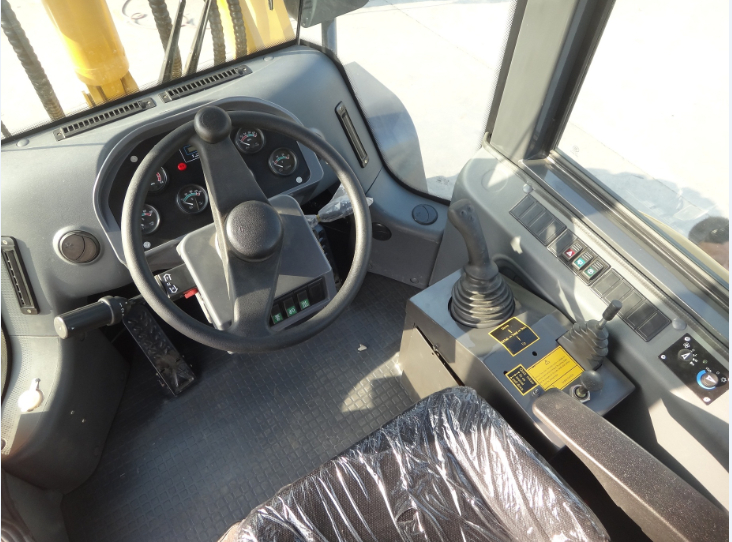

DETAILED PICTURES:
Company Profile:

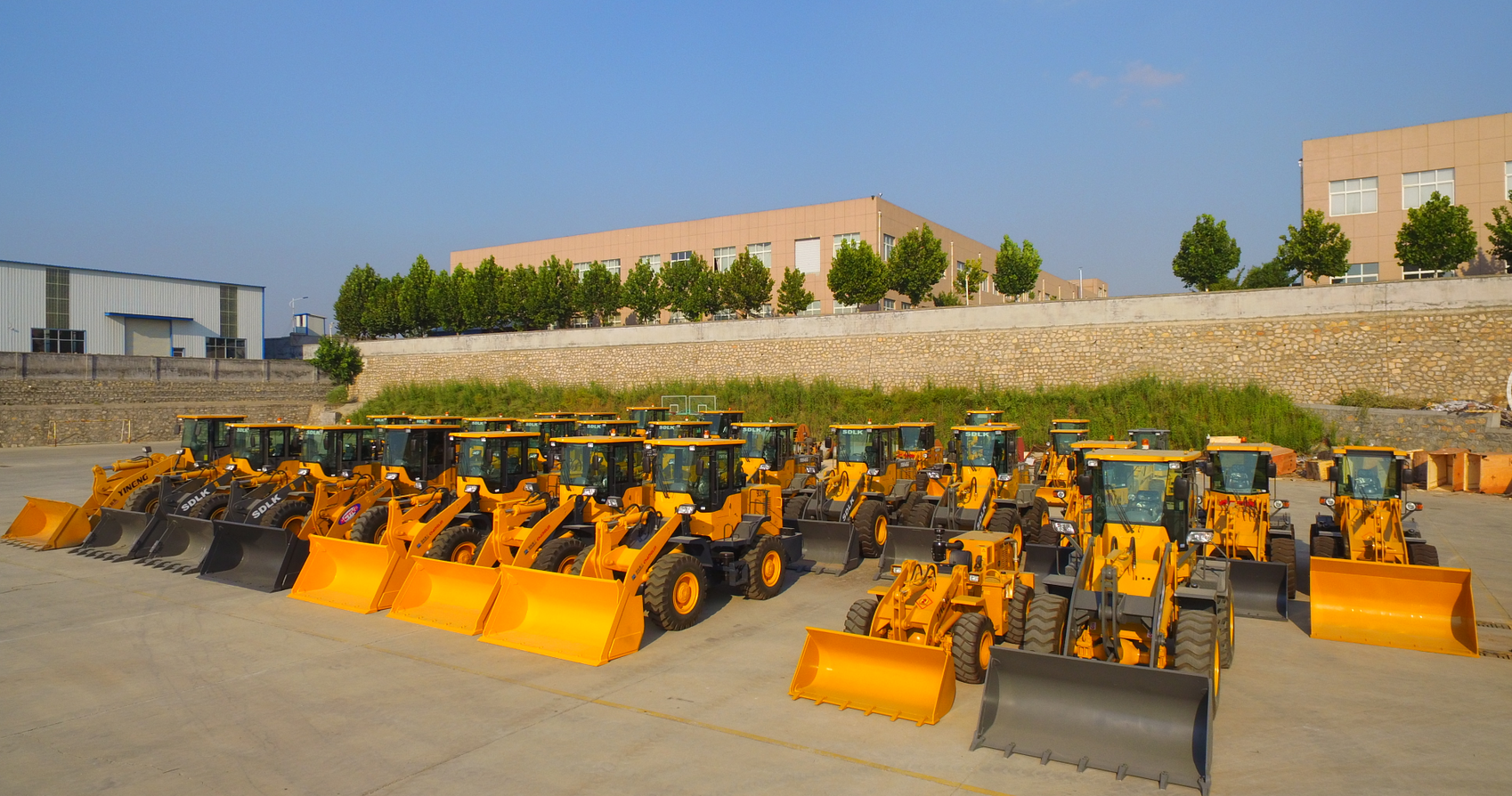

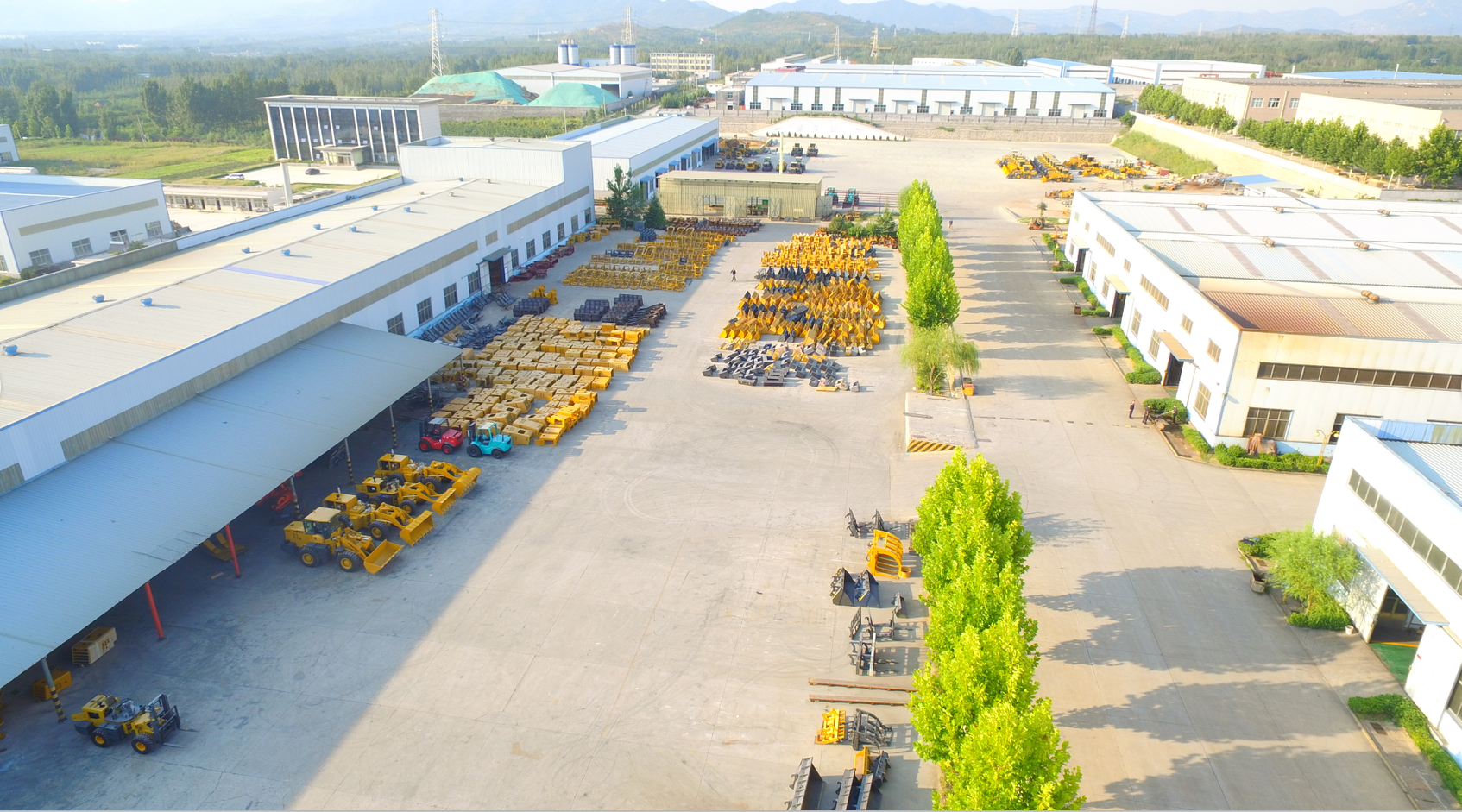

Tavol Company was established in 2012, A Chinese Construction Machinery Manufacturing Brand that Provides Customized Services. Mainly Produces More Than 20 Models of Wheel Loaders with a Load Capacity Ranging From 0.5 tons to 6 tons. and Other Related Construction and Agricultural Machinery, Such as Forklifts , Excavators, Cranes and Tractors etc.
