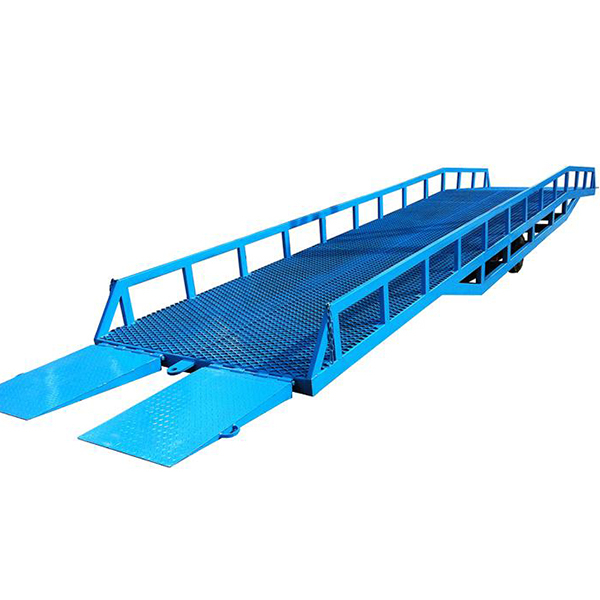

Hydraulic mobile dock ramp for Sale

Hydraulic mobile dock ramp is made from strong performance steel which can be repeat used for many years. Full paved platform, strong supporting wheels and advanced welding tech are our ramp’s features differed from other brands.
load capacity:
adjust range:
driving force:
outline size:
weight:
Availability:
Quantity:
  • Hydraulic mobile dock ramp for Sale
  • TAVOL
  • 8428909090

Product Description

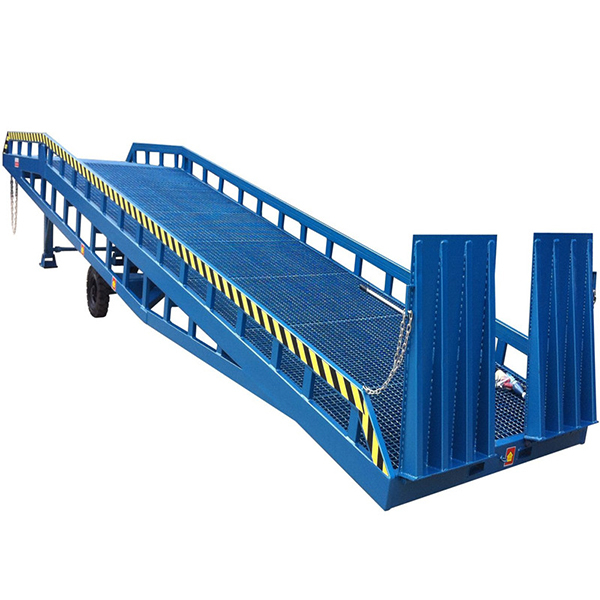

Hydraulic mobile dock ramp for Sale


Hydraulic mobile dock ramp is made from strong performance steel which can be repeat used for many years.

Full paved platform, strong supporting wheels and advanced welding tech are our ramp’s features differed from other brands.

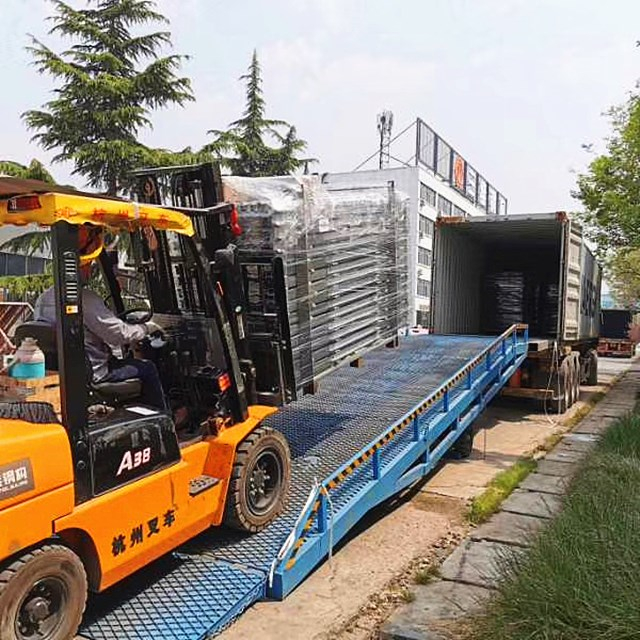

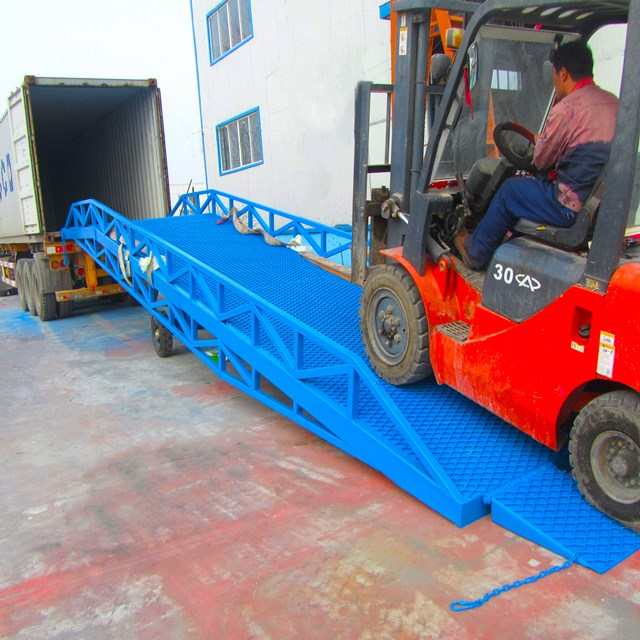

Mobile Yard Ramp (2)

Parameter of Mobile Yard Ramp

Product Name

Hydraulic dock ramp

Model

DCQY-12

Adjusting height

1100-1800mm

Adjusting

Manual or electric

Main beam

120*60*6mm rectangular tube

Platform

5mm steel plate

Antiskid plate

5mm steel mesh

Tire

500-8 solid

Overall dimension

11400*2000*1100mm

Self weight

2950kg


Product feature and application

Mobile loading ramps are widely used in terminals, stations, warehouses and other places. According to the different needs of users, as the special design in terms of dimensions, load bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush.

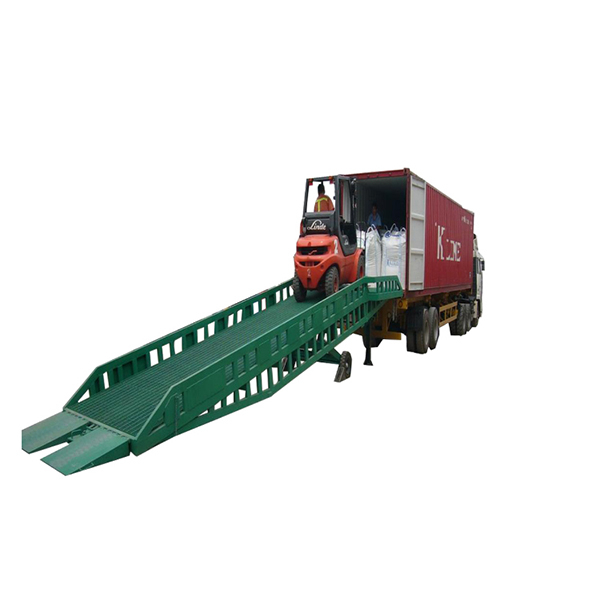

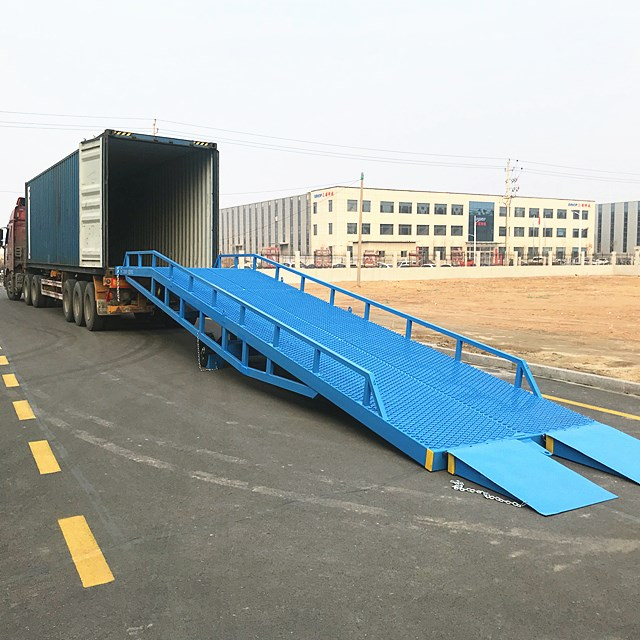

yard ramp


Different Optional Models



Model No.

Loading Capacity

(T)

Up/ down

Regulation

(mm)

Overall dimention

(mm)

Total weight (kg)

DCQY-6

6

1100-1800

14000×2000×1100

2300

DCQY-8

8

1100-1800

14000×2000×1100

2480

DCQY-10

10

1100-1800

14000×2000×1100

2750

DCQY-12

12

1100-1800

14000×2000×1100

2950

DCQY-15

15

1100-1800

14000×2000×1100

3350
