piezoelectric acceleration sensor

The acceleration sensor is a test sensor that measures vibration and converts the vibration signal into an analog or digital signal;

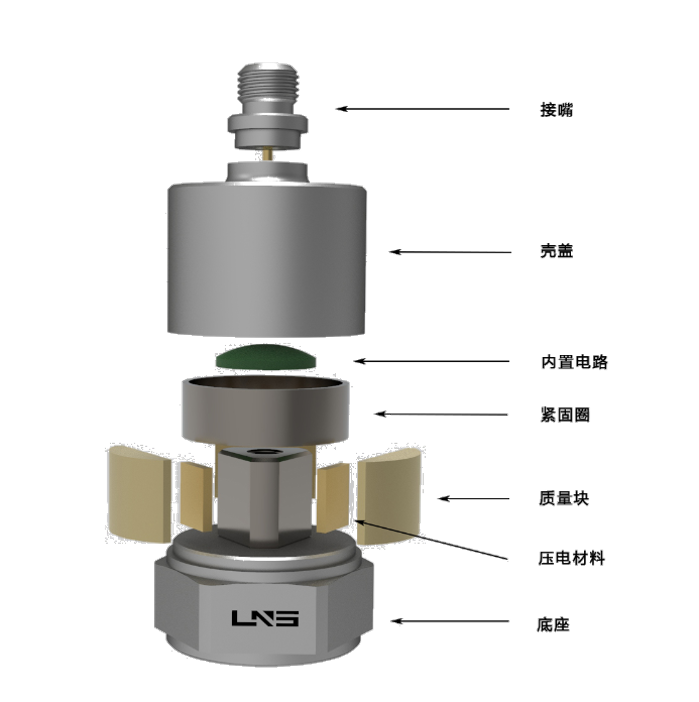

The acceleration sensor is composed of a mass, a damper, an elastic element, a sensitive element and an adjustment circuit;
During the movement of the sensor, through the measurement of the inertial force on the mass block, the movement acceleration is obtained by calculation using Newton's second law of motion;
At present, piezoelectric acceleration sensor is the most commonly used sensor in vibration measurement.
Availability:
Quantity:

Product Description

The acceleration sensor is a test sensor that measures vibration and converts the vibration signal into an analog or digital signal;

The acceleration sensor is composed of a mass, a damper, an elastic element, a sensitive element and an adjustment circuit;

During the movement of the sensor, through the measurement of the inertial force on the mass block, the movement acceleration is obtained by calculation using Newton's second law of motion;

At present, piezoelectric acceleration sensor is the most commonly used sensor in vibration measurement.


Product Introduction


Type Model Pictures Specifications
Underwater type B05Y70 1

Sensitivity:50 mV/g

Measuring range:±100 g peak

Frequency Range(±5%):1–8kHz

Water pressure resistance: under water 160m

Standard type B02B04 2

Sensitivity:10 mV/g

Measuring range:±500 g peak

Frequency Range(±2%):1–8 kHz

Shock type C00CG3 3

Sensitivity:0.3 pC/g

Measuring range:±80000 g peak

Frequency Range:(±5%):10–10kHz

Micro Type B06BM1 44

Sensitivity:100mV/g

 Measuring range:±50 g peak

 Frequency Range:(±5%):1–10kHz

 overall size:φ8.5*5.1mm     weight:1.5g

Triaxial type B03Y32 5

 Sensitivity:20mV/g

 Measuring range:±250 g peak

 Frequency Range:(±5%):1–8kHz

  overall size:9.5*9.5*9.5mm

MEMS type A06D02 6

Sensitivity: 80 mV/g

 Measuring range: ±50 g peak

 Frequency Range:(±1dB):0–1200Hz

High temperature type C02CT1 7

 Sensitivity:10 pC/g

 Operating temperature range:-50-482℃

 Measuring range:±200 g peak

 Frequency Range:(±5%):0.5–4kHz


Product Advantages


Complete variety

The current products include seven categories, more than 300 kinds of sensors, and can be customized according to customer needs.


Complete production line

With sensor design and production capabilities, piezoelectric wafer R&D and production capabilities, one-stop from materials to devices.


intellectual property

Independent invention patent, using unique design structure, combined with advanced manufacturing technology, the product level is comparable to foreign countries.


Mature technology

The production process is mature, from ultra-precision processing of parts, precise assembly of sensors, to strict testing and inspection, to ensure that the product yield is >99%.
