CE ISO 4-18m Hydraulic Electric Mobile Scissor Lift

Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC and Diesel power are also available for option.
Lift height:
work height :
load capacity:
Color:
package:
Quantity:
  • CE ISO 4-18m Hydraulic Electric Mobile Scissor Lift
  • TAVOL
  • 8428909090

Product Description

1.product Introduction

Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC and Diesel power are also available for option.

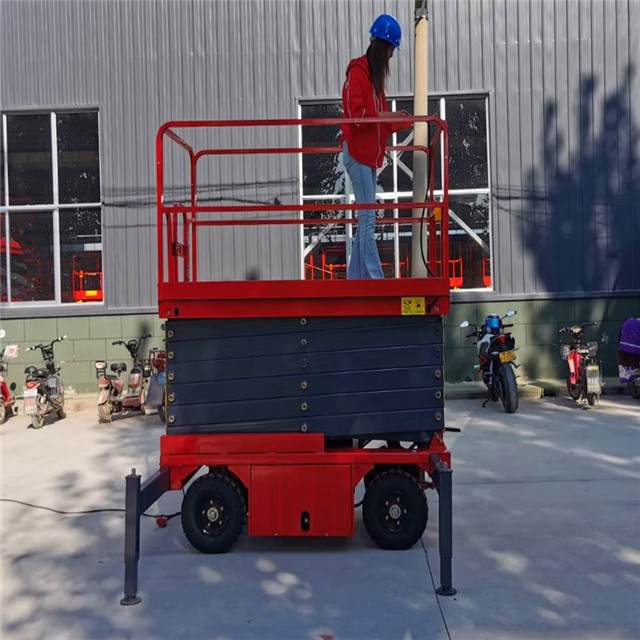

traction scissor lift

2. Different Models are supplied

Mobile Scissor Lift

Platform size

Load capacity

Lift Height

Overall dimension mm

Self weight kg

SJY0.5-4

2106*830mm

300kg

4m

2270*1000*1135

810

SJY0.5-6

2106*830mm

300kg

6m

2270*1000*1270

900

SJY0.5-7

2106*830mm

300kg

7m

2270*1000*1270

980

SJY0.5-8

2106*930mm

300kg

8m

2270*1100*1380

1060

SJY0.5-9

2106*930mm

300kg

9m

2270*1100*1500

1150

SJY0.5-10

2106*1230mm

300kg

10m

2270*1400*1550

1360

SJY0.5-11

2106*1230mm

300kg

11m

2270*1400*1670

1450

SJY0.5-12

2550*1530mm

300kg

12m

2770*1750*1860

2260

SJY0.5-14

2809*1530mm

300kg

14m

3062*1750*1810

2400

SJY0.5-16

2809*1600mm

300kg

16m

3062*1910*2100

3500

SJY0.5-18

3065*1600mm

300kg

18m

3350*1910*2100

3900



3. Product feature and application

Hydraulic mobile scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You   can move it easily to the right working area.

scissor lift

lift platform
