Tavol Brand BZ Model Column Mounted Jib Cranes for Sale with Nice Price

Tavol Brand BZ Model Column Mounted Jib Cranes for Sale with Nice Price,
Popular Model 1t, 2t, 3t, 5t, 10t,
Jib Lenth 3m, 4m, 5m, 6m, 8m, 10m,
Column Height 4m, 5m, 6m, 8m, 10m,
Work duty: M3, M4
Control type: Pendent handle or remote control
Can equiped with electric wire rope hoist, electric chain hoist, or Euro design rope hoist etc.
Quantity:
  • BZ model column mounted jib cranes
  • Tavol
  • 045

Product Description

Tavol Brand BZ Model Column Mounted Jib Cranes for Sale with Nice Price, Popular Model 1t, 2t, 3t, 5t, 10t, Jib Lenth 3m, 4m, 5m, 6m, 8m, 10m, Column Height 4m, 5m, 6m, 8m, 10m, Can equiped with electric wire rope hoist, electric chain hoist, or Euro design rope hoist etc.


A type of crane, which has a horizontal member (known as jib or boom) that supports a moveable hoist fixed to a floor-mounted pillar is known as jib crane. Jib Cranes lift and transport materials in semi circles (180 degrees) or full circles (360 degrees) around their support structure.


IMG_20191203_141326



01- Overhead Jib Crane Structure:



A type of crane, which has a horizontal member (known as jib or boom) that supports a moveable hoist fixed to a floor-mounted pillar is known as jib crane. Jib Cranes lift and transport materials in semi circles (180 degrees) or full circles (360 degrees) around their support structure.



BZ model jib crane is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc. The bottom of the vertical shaft is fixed on the concrete base.



Product Features:

1. Ergonomic design;

2. Increase worker productivity;

3. Reduce workplace injuries;

4. Improve safety.

According to hoist type, it separate with two type:

1- BZ Jib Crane with wire rope hoist

column jib crane

2- BZ jib crane with electric chain hoist.

jib crane price



02- Overhead Jib Crane Specification:



SI

Descriptions

Reference Data

1

Jib Crane capacity

500kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

2

Jib length

3m -10m

3

Column height

3m - 12m

4

Jib crane Work duty

A3/M3

5

Control method

Pendent control

6

Jib crane Motors

Chinese Nanjing brand

7

Jib Crane Hook

Forged hook with safety lock

8

Jib crane Lifting speed

0-8M/Min

9

Trolley speed

0-20M/Min

10

Rotation speed

0.8r/min

10

Slewing degree

180 or 360 degrees



03- overhead jib crane Application:

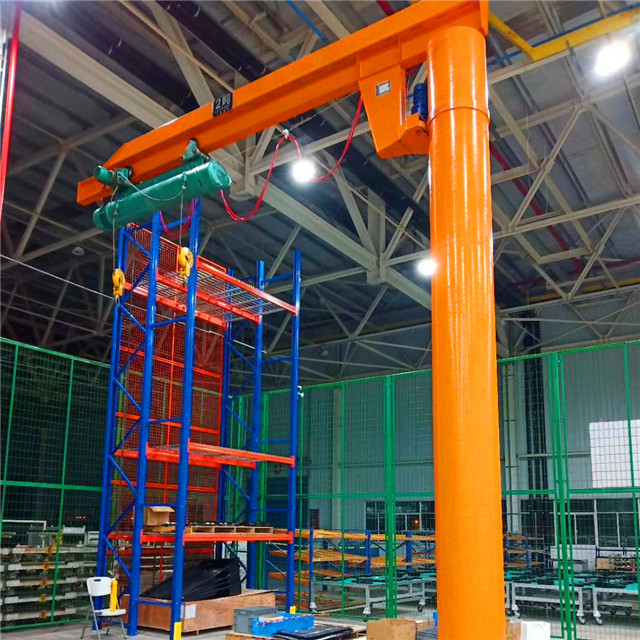

BZ model jib crane can be installed virtually anywhere including indoors or outdoors.

Freestanding jib systems can be used underneath large bridge crane systems, or in open areas where they can support individual work cells.

They can be used outdoors at marinas or loading docks, and indoors for machining and assembly operations where multiple jibs can be used in conjunction for staged operation.


mmexport1572005322387


04- overhead jib crane Product Package



Normally the pillars and arms of the jib crane will be packed by woven bag; And electrical parts will be packed by plywood box;



jib crane packing

1t jib crane
