Materials Cargo Lift Installation on The New Zealand Airport

Lead rail hydraulic elevator platform is used for transfer cargo between different floors. freight lift will easily find their application in factories, construction buildings even private homes .Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.
load capacity:
Lifting height:
platform size:
package:
Quantity:
  • Materials Cargo Lift Installation on The New Zealand Airport
  • Tavol
  • 060

Product Description

1. Product introduction

Lead rail hydraulic elevator platform is used for transfer cargo between different floors. freight lift will easily find their application in factories, construction buildings even private homes .Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.



This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.



We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. machine are available in capacities from 100kg. to 100,000kg.

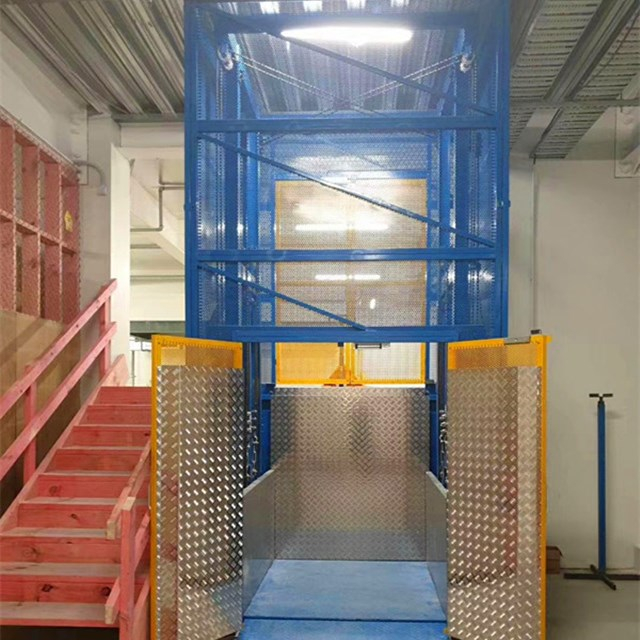

mmexport1581634686498

 2.Product Parameter

Product name

Cargo Lift

Model

SJD5-6

Load capacity

5ton

Platform height

6m

Platform size

2500*3000mm

Voltage

380V/50HZ/3Phase or custom-made

Pump station

7.5kw,Anshan Lisheng,Top Quality Brand

Hydraulic oil

32# anti-wear hydraulic oil

Railing

Removable type

Control type

Digital control button

Control voltage

24V

Steel structure

High quality Shandong group steel







3. Different Models of cargo lift



Model

Platform Size(mm)

Load Capacity(kg)

Lift Height(m)

Self Height(mm)

Motor Power(kw)

SJD0.5-2.5

1500*1500

500

2.5

100

2.2

SJD0.5-10

2000*3000

500

10

120

3.0

SJD1-3.5

1400*1300

1000

3.5

120

3.0

SJD1.5-5.5

2000*2000

1500

5.5

150

4.0

SJD2-4

2700*1800

2000

4.0

150

4.0

SJD3-8

2500*2500

3000

8.0

180

5.0

SJD5-15

2500*2500

5000

15.0

180

7.5

SJD10-7

4500*3500

10000

7.0

280

7.5


4. Application

  It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; it is installed in the pit or the ground floor to convey the goods from one working level to another. The control panels are available at the designated floors and one the lift platforms.

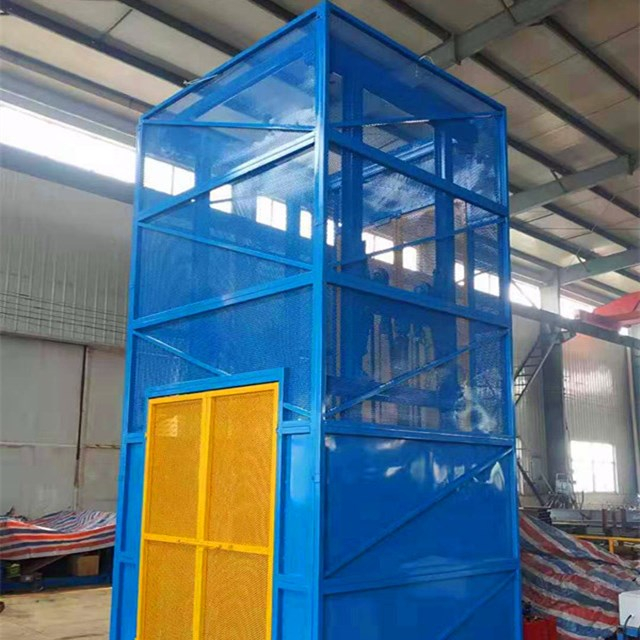

-63286a64873add19


5. Detail picture




1.Guide rails: high strength manganese steel


2.Floor call box: digital display


3. Hydraulic station


4. Upper platform: anti-skid checkered plate

6. Deliver, shipping and serving

Delivery time: 20days after advance payment

Package: Packed in 1*20 GP container, high quality seaworthy package



7.FAQ:

If you want quick offer, please confirm following request:

1. Lift height: ?m

2. Load capacity: ?ton

3. Platform size: ?m*?m
