Customized Hydraulic Double Guide Rail Cargo Lift Elevator Used in Factory Workshop/Warehouse

Cargo Lifting Platform is a very widely used vertical cargo transportation equipment. It drives the pump station through the motor, and relies on the cylinder to drive the chain to drive the hydraulic lifting freight elevator to lift horizontally. Because hydraulic pressure is used as the lifting power.
It has the characteristics of large load capacity and stable lifting. It is widely used in the vertical transportation of goods between high-rise buildings.Generally used in factory workshops, warehouses, logistics, etc.
max .load :
Lift height:
Color:
Material:
driving force:
Availability:
Quantity:
  • SJD
  • TAVOL

Product Description

Cargo Lifting Platform is a very widely used vertical cargo transportation equipment. It drives the pump station through the motor, and relies on the cylinder to drive the chain to drive the hydraulic lifting freight elevator to lift horizontally. Because hydraulic pressure is used as the lifting power. It has the characteristics of large load capacity and stable lifting. It is widely used in the vertical transportation of goods between high-rise buildings.Generally used in factory workshops, warehouses, logistics, etc.

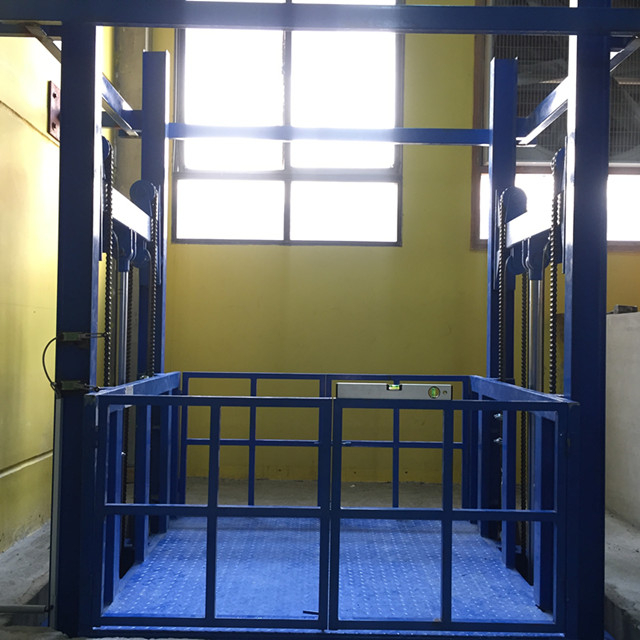

cargo lift

Cargo Lifting Platform not only have all safety device of the traditional elevator, but also have the special safety system hereinafter.

1.Spillover valve, it can prevent high pressure when the machine moves up.
2. Manual emergency valve,it can go down to the nearest floor and open the door when you meet an emergency.
3. Pipe fracture valve,when the hydraulic system pipe fracture,it can cut down the channel of the oil to stop the falling.
4.Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standard.

Different models as below:

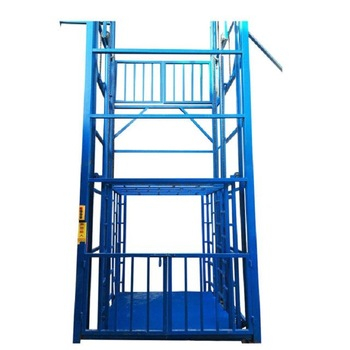

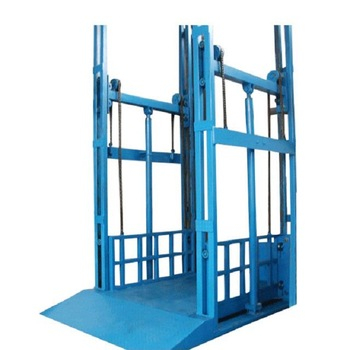

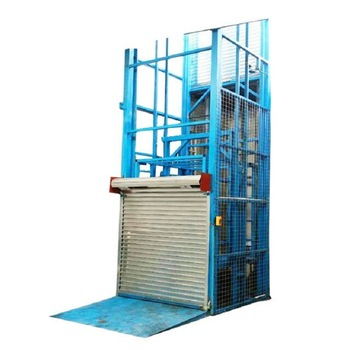

cargo lift

1. Max load capacity can reach 20 ton, multi point control, interactive lock between floor, achieve safe use. 2.Max lift height can reach 35 m, by adopting external cylinder or double cylinders to guarantee the stability of operating, low noise, easy maintenance and long-term lifetime. 3.Declined by hand when the power is cut.Emergency stop button. 4.Pit depth is 15-30 cm, there is no limit for floor height, it can be manufactured based in site environment.


Packing

Packaging Detail:
Wooden boxes by 20GP container
Delivery Detail:
within 15 working days after receiving the advanced payment

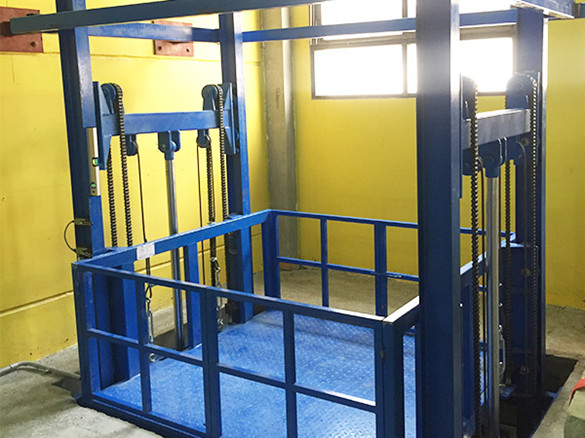

cargo lift
