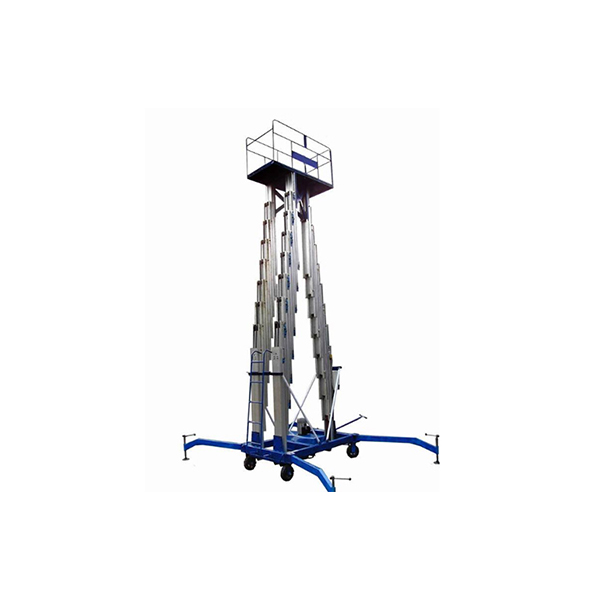

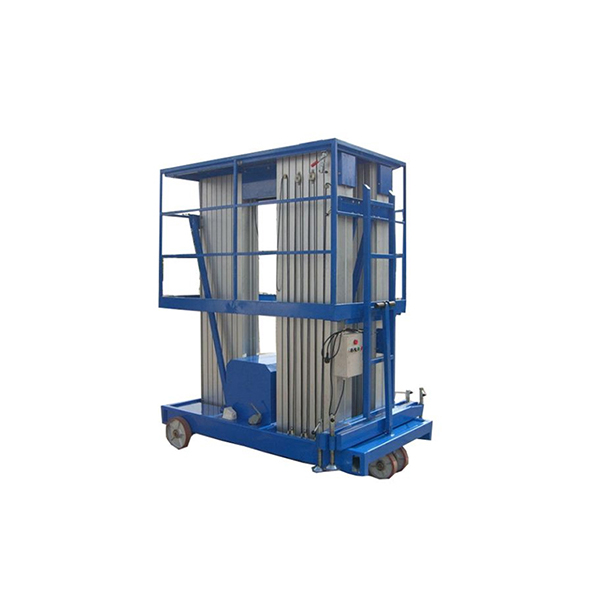

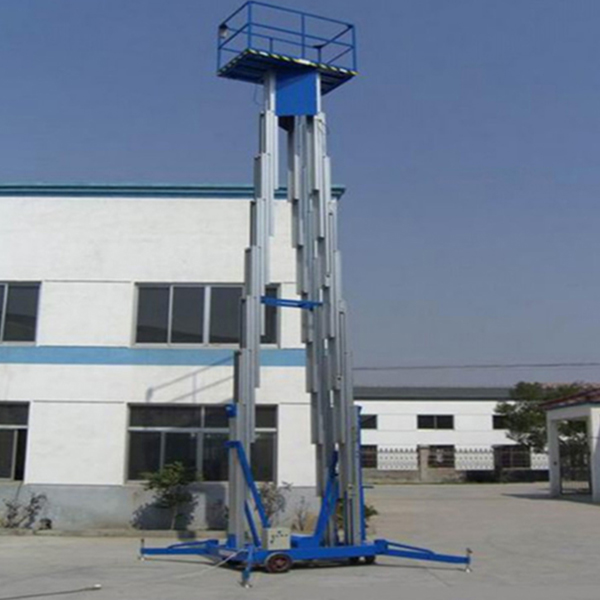

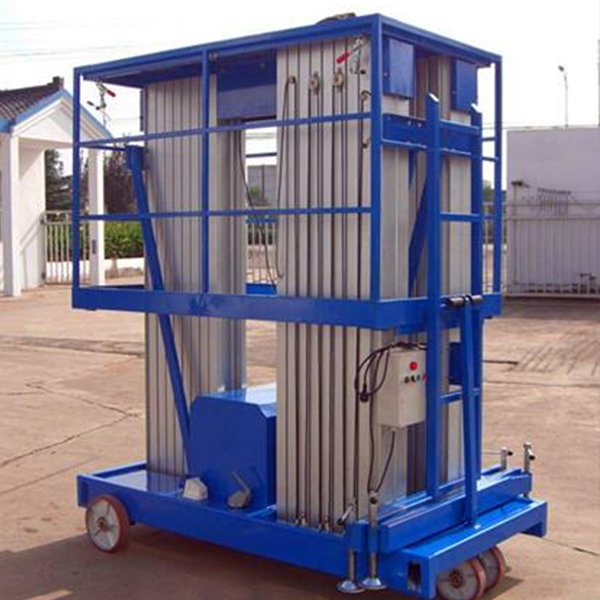

CE ISO 16m Hydraulic Three Mast Aluminum Alloy Lift

1. aluminum alloy lifts are mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls.
2. The lifting height ranges from 4m to 18m and lifting capacity varies from 125kg to 200kg.The power sources could be 110V,220V,380V or chargeable battery.
3. The control panels are available both on the lift platforms or the ground.
Availability:
Quantity:
  • CE ISO 16m Hydraulic Three Mast Aluminum Alloy Lift
  • TAVOL
  • 8428909090

Product Description

1. Product introduction

1. aluminum alloy lifts are mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls.

2. The lifting height ranges from 4m to 18m and lifting capacity varies from 125kg to 200kg.The power sources could be 110V,220V,380V or chargeable battery.

3. The control panels are available both on the lift platforms or the ground.


2. Product Feature

1.Light weight, good flexibility, suitable for 1-2 people operate.

2.Special-made guiding wheel device between columns, Lift steadily.

3.Compact structure, small size during transport, can enter narrow spaces to work.

4.Leg support structure double protection, working stably.

5.No noise and air pollution, not need installation, easy to maintenance.

6.Can be put down by hand or electric power according to install site requirements.

3.Product Parameter

Product Name

Man Lift

Model

SJYL200-16-3

Load capacity

200kg

Lift height

16m

Working height

18m

Platform size

1600*800mm

Hydraulic cylinder

HSG60/35*3 Pieces, Japan VALQUA seal ring

Motor power

2.2kw

Control model

AC power

Up/down speed

4-6m/min

Tire

200-8*4 Polyurethane wheels

Dimension

2000*120*2700mm

Weight

1120kg

4. Application

Aluminum alloy lifts are variously used in municipal engineering, gardens, hotels, venues, supermarket, railways, factories, shopping centers, stations, airports, workshop, hospitals, warehouses for maintenance, cleaning,etc. 图片2
