3ton 6m stationary scissor car lift

Stationary scissor car lift platform is a widely used car lift equipment. It's scissor structure, make the lifting platform stability ,wide platform and high bearing capacity, when lifting has higher .It makes aloft work more efficient and more security. It makes parking your car in the upstairs become possibility and more efficient and more security.

Quantity:
  • 3ton 6m stationary scissor car lift

Product Description

1. Product introduction

Stationary scissor car lift platform is a widely used car lift equipment. It's scissor structure, make the lifting platform stability ,wide platform and high bearing capacity, when lifting has higher .It makes aloft work more efficient and more security. It makes parking your car in the upstairs become possibility and more efficient and more

security.


2. Product Advantage

Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.

图片2图片3



3.Product Parameter

Product name

Stationary scissor lift

Model

SJG3-6

Load capacity

3ton

Platform height

6m

Platform size

6000*3000mm

Voltage

380V/50HZ/3Phase or custom-made

Pump station

7.5kw,Anshan Lisheng,Top Quality Brand

Hydraulic oil

32# anti-wear hydraulic oil

Railing

Removable type

Drive mode

Hydraulic

Control type

Digital control button

Control voltage

24V

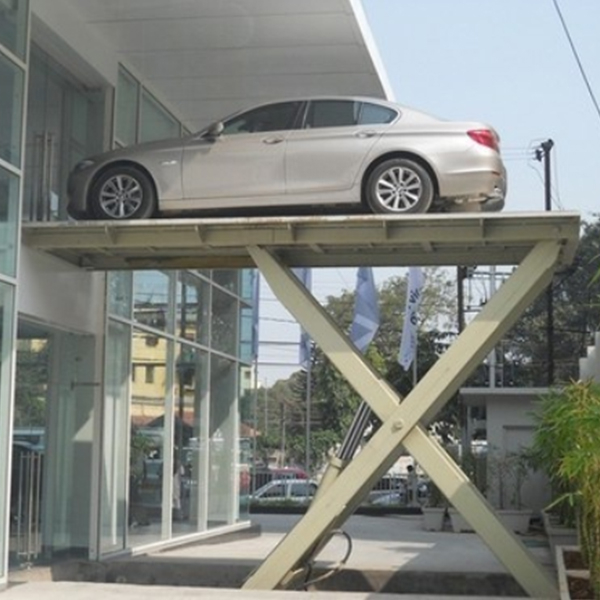

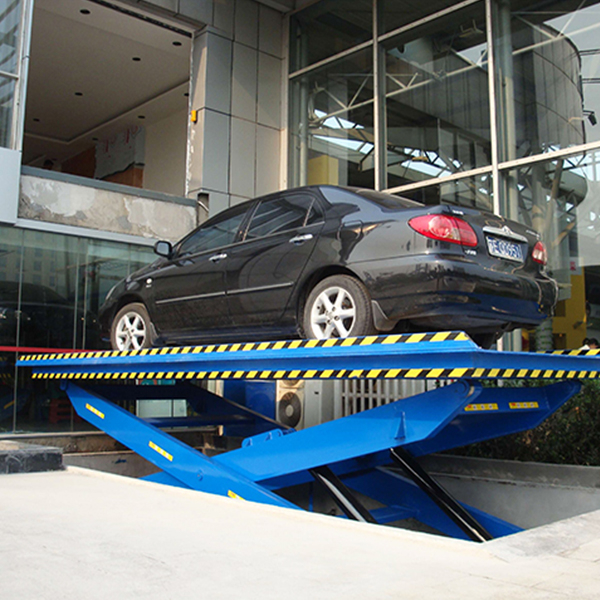

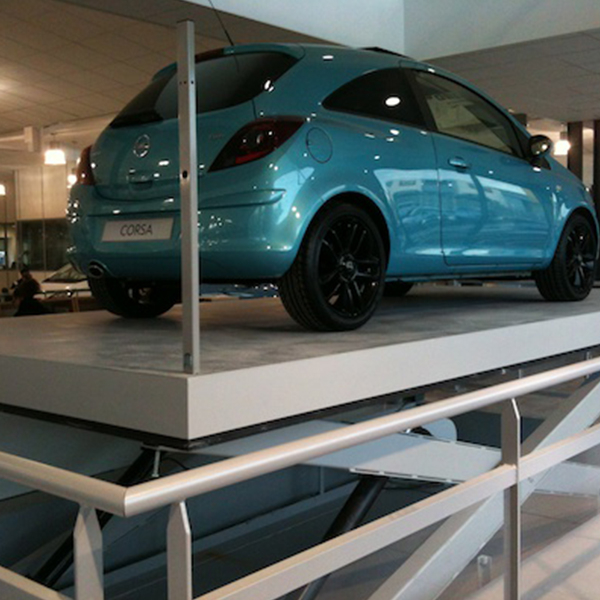

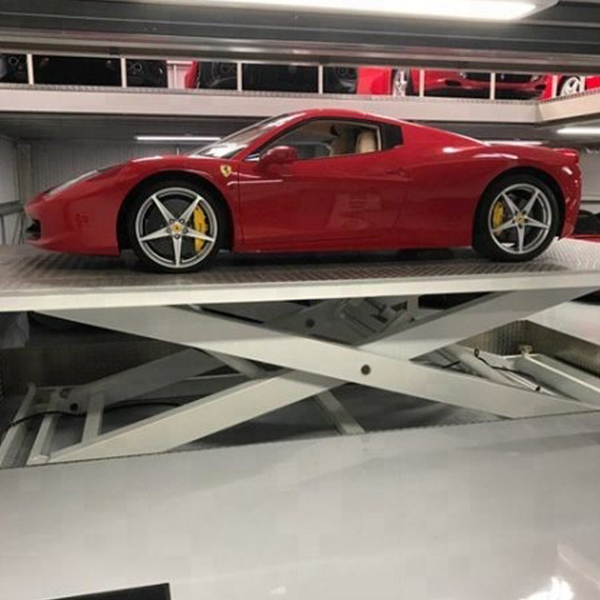

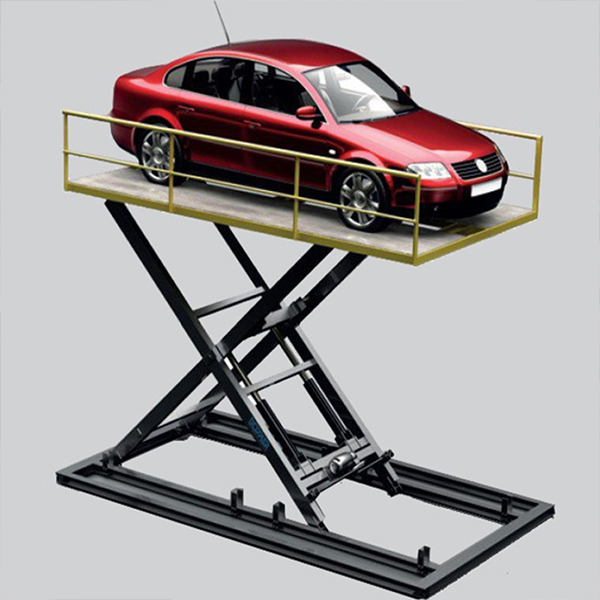

 4. Detail picture




5. Application

High precision hydraulic transmission, stable lifting, simple operation, low failure rate, high strength chain drive, large load capacity, long service life, high safety factor, lift the safe and stable, adjustable screw. ensure smooth lifting platform level, cars, large capacity pump station, lifting speed, operation a low automobile 4S stores, large garage, large parking lot, for vehicle lifting or parking, can also be used as a cargo lift.图片5



6. Deliver, shipping and serving

Shipping date: 20 days after advance payment

Package: Packed in 1*20GP container




7.FAQ:

If you want quick offer, please confirm following request:

1. Lift height: ?m

2. Load capacity: ?ton

3. Platform size: ?m*?m
