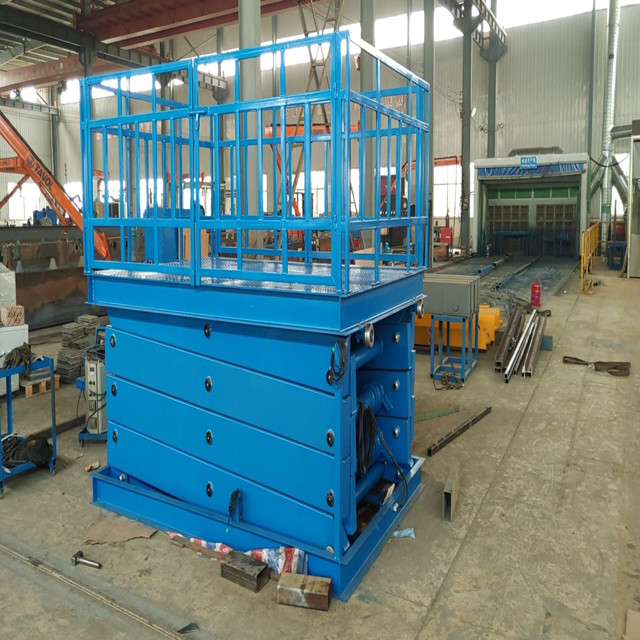

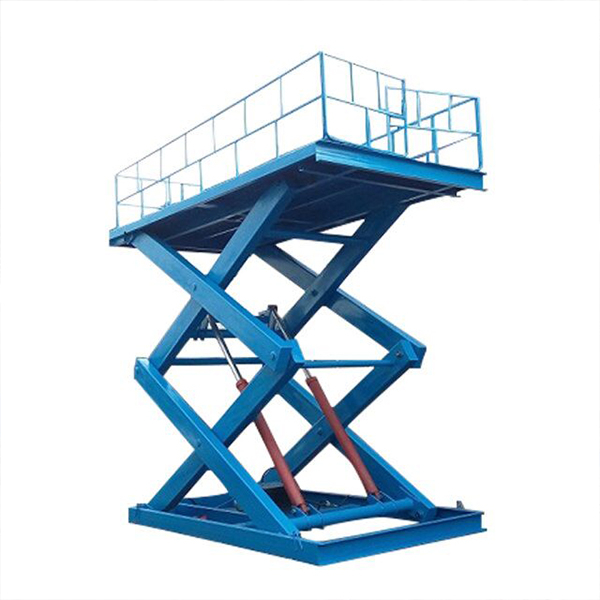

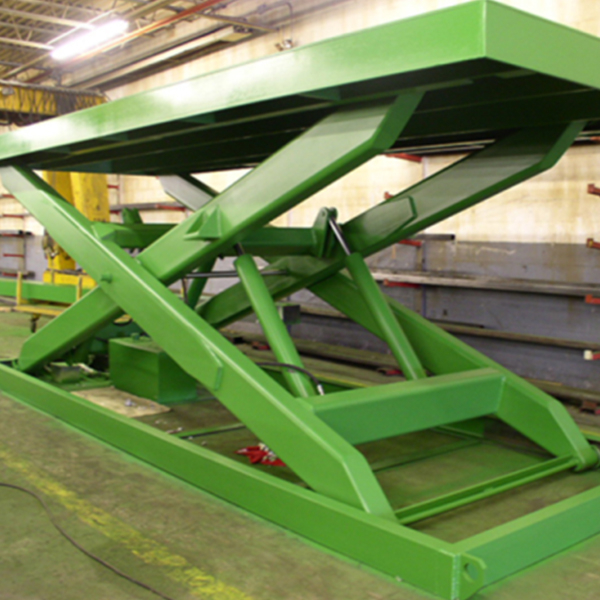

3ton 3m stationary scissor lift for warehouse

Our stationary scissor lift tables offer a simple pushbutton operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains, portal rails, etc.
load capacity:
Lifting height:
platform size:
package:
Quantity:
  • 3ton 3m stationary scissor lift for warehouse
  • TAVOL
  • 8428909090

Product Description

1. Product introduction

Our stationary scissor lift tables offer a simple pushbutton operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains, portal rails, etc.

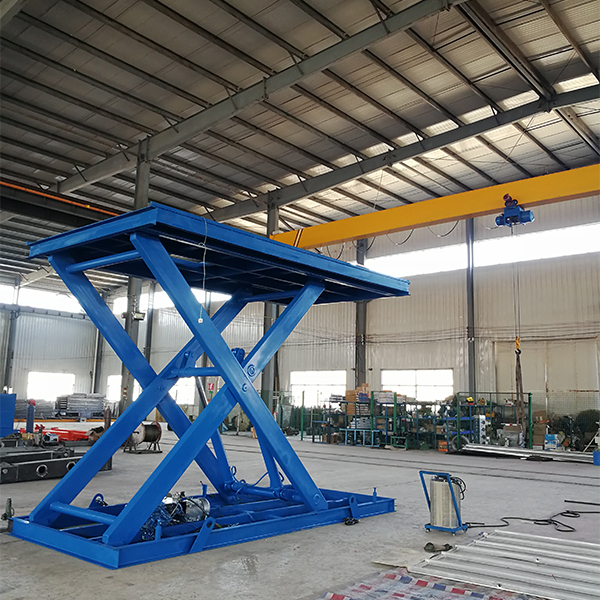

Fixed scissor liftFixed scissor lift

2. Product Advantage

A .Installed in the pit, do not occupy space

b. When lifting up or down, three buttons(up, down, stop) control the lift

c. Great load capacity,125%capacity load test anti-skid platform

d. Sensitive overload protection devices locking device for failing protection

1.Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture

2.Spillover valve :it can prevent high pressure when the machine moves up. adjust the pressure

3.Emergency decline valve: it can go down when you meet an emergency

4.Safety bar: when the platform decline, if it touches anything, it will be stopped, so it can protect goods or operators.

3.Product Parameter

Product name

Stationary scissor lift

Model

SJG3-3

Load capacity

3ton

Platform height

3m

Platform size

5800*3000mm

Voltage

380V/50HZ/3Phase or custom-made

Pump station

7.5kw,Anshan Lisheng,Top Quality Brand

Hydraulic oil

32# anti-wear hydraulic oil

Railing

Removable type

Control type

Digital control button

Control voltage

24V

4. Application

It performs dependably in a variety of demanding storage and logistics applications. Loading&unloading goods in and out warehouses, lifting up and down between floors freely, which help customers save much labour and time.

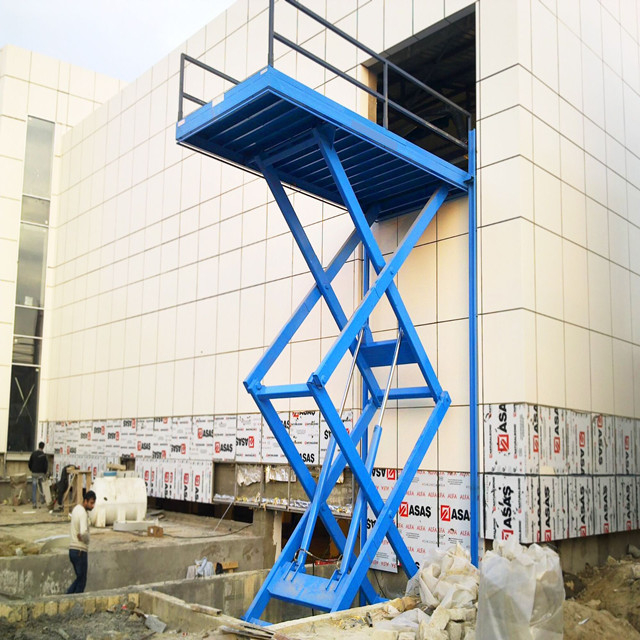

stationary scissor lift

5. Product qualification


6. Deliver, shipping and serving

Shipping date: 20 days after advance payment

Package: Packed in 1*20GP container
