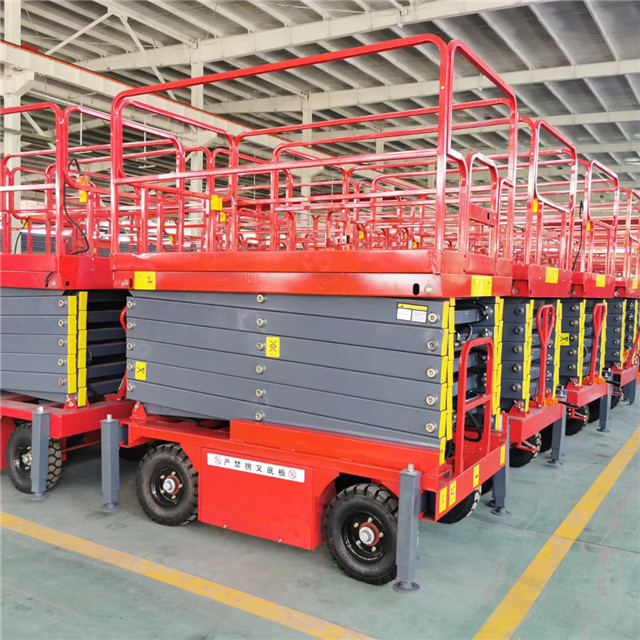

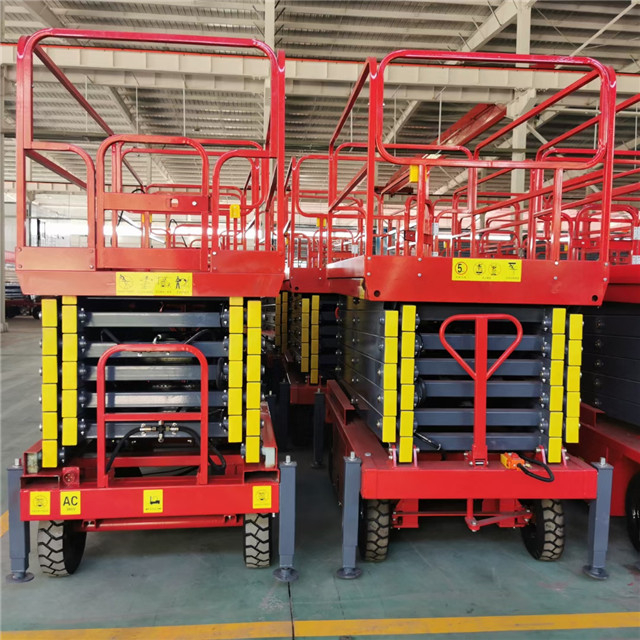

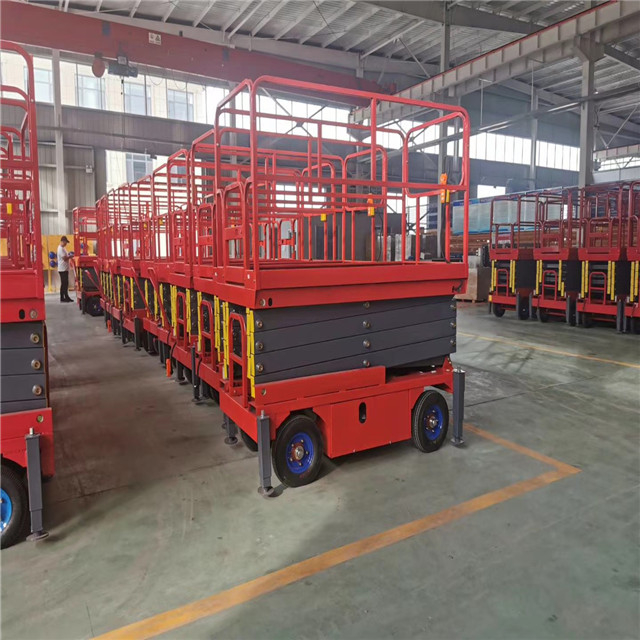

10m Auxiliary walk type Aerial Scissor lift table

Hydraulic scissor lift platform are used where more workspace and lifting capability is required. With working heights up to 18m and capabilities up to 500kg,they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.
load capacity:
Lifting height:
platform size:
self weight:
package:
Availability:
Quantity:
  • 10m Auxiliary walk type aerial scissor lift table
  • TAVOL
  • 8428909090

Product Description

1. Production Introduction

Hydraulic scissor lift platform are used where more workspace and lifting capability is required. With working heights up to 18m and capabilities up to 500kg,they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.

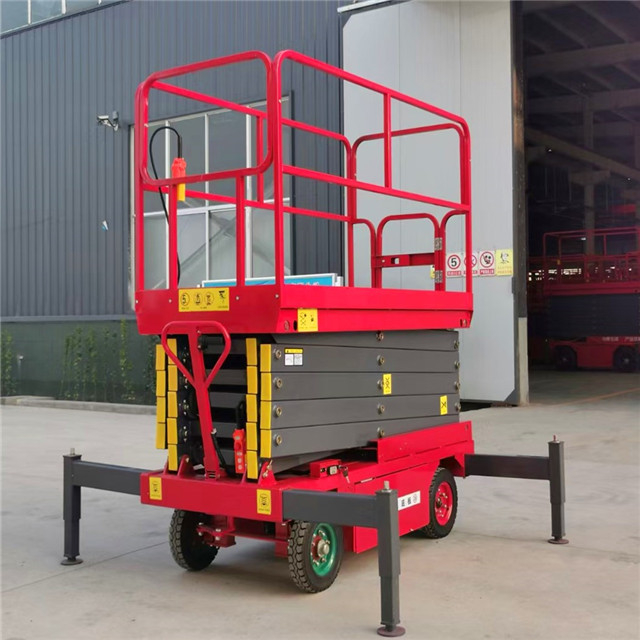

mobile lift



2. Product Parameter

Model

SJY0.5-10

Load capacity

500kg

Platform height

10m

Working height

12m

Platform size

2106*1230mm

Main structure

high quality rectangular tube,Q235B

Hydraulic cylinder

HSG80/45*4Pieces, Japan VALQUA seal ring

Battery

85Ah*4 Pieces

Tire

400-8*4 pneumatic tyre

Distribution box

Brand name: Delixi

Up/down speed

4-6m/min, Down speed can be adjusted

Dimension

2270*1400*1550mm

Self weight

1360kg

Charging voltage

220V/50HZ/single phase or custom-made


3. Product Feature and Application

1. Control button: Up, Down and emergency stop.

Easy to operate


2.ground control: battery capacity display, start/stop, speed change


3.draw bar

Lift platform can move easily by using handle.


4. Bubble level

The bubble level is designed to help to indicate whether a surface is level.


4. Application

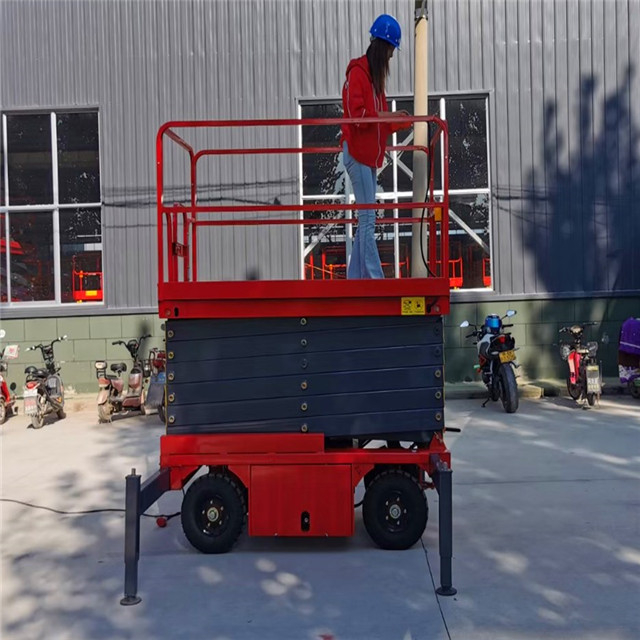

traction scissor lift

5. Product qualification


6. Deliver, shipping and serving

Shipping date: 20 days after advance payment

Package: Packed in bubble, in 1*20GP container
