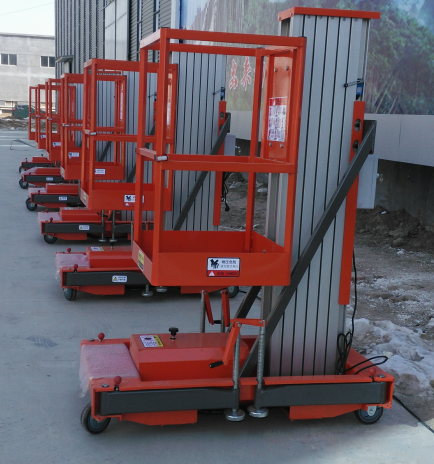

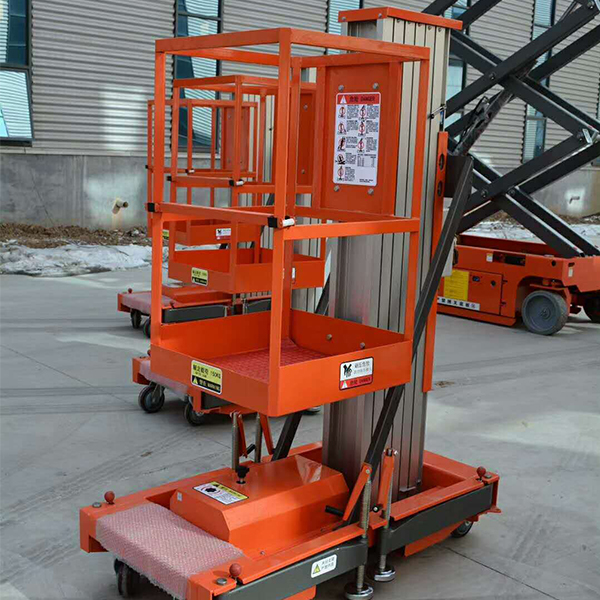

10m Hydraulic Single Mast Aluminum Alloy Man Lift

The 130kg hydraulic aluminum alloy man lift platform make them a versatile option for a wide variety of rental, light-duty construction and maintenance applications.
Ideal for maneuvering in tight spaces, they are excellent for indoor usage.
load capacity:
Lifting height:
work height :
platform size:
power:
Availability:
Quantity:
  • 10m Hydraulic Single Mast Aluminum Alloy Man Lift
  • TAVOL
  • 8428909090

Product Description

1. Product introduction

The 130kg hydraulic aluminum alloy man lift platform make them a versatile option for

a wide variety of rental, light-duty construction and maintenance applications.
Ideal for maneuvering in tight spaces, they are excellent for indoor usage.


2. Product Advantage

1. Travel switch: The lifter will stop automatically when touch it.

2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.

3. Outrigger: guarantee stability of whole machine when work, Prevent people use the lift when it is unstable

4.There is a "power" button on the control panel. Press "power" and "up" meanwhile, the lift will go up. This is a safety design to protect user from suddenly lifting of user's press the "up" or "down" button negligently



3.Product Parameter

Product Name

Man Lift

Model

SJYL130-10-1

Load capacity

130kg

Lift height

10m

Working height

12m

Platform size

600*600mm

Hydraulic cylinder

HSG60/35*2 Pieces

Motor power

1.5kw

Control model

AC power

Up/down speed

4-6m/min

Tire

200-8*4 Polyurethane wheels

Dimension

1300*820*2200mm

Weight

360kg

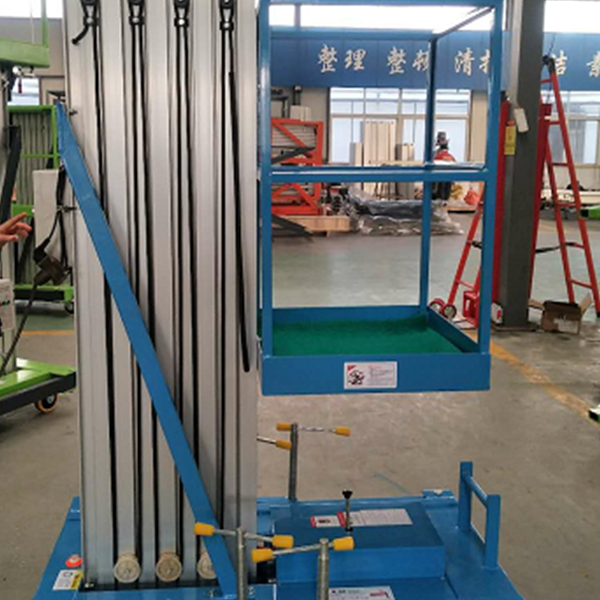

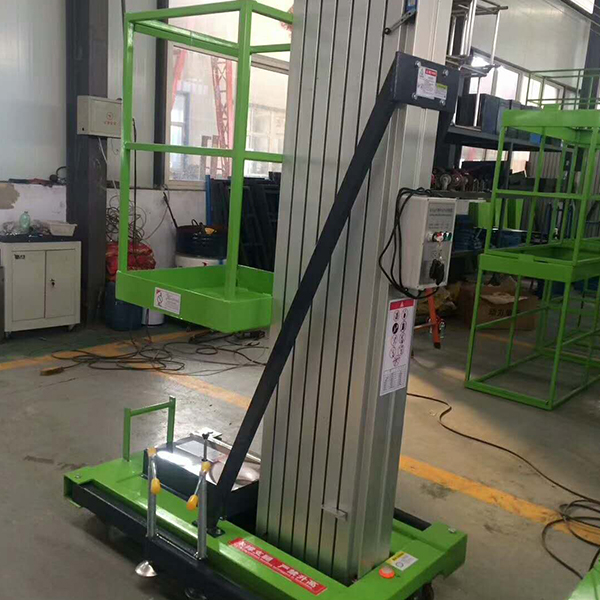

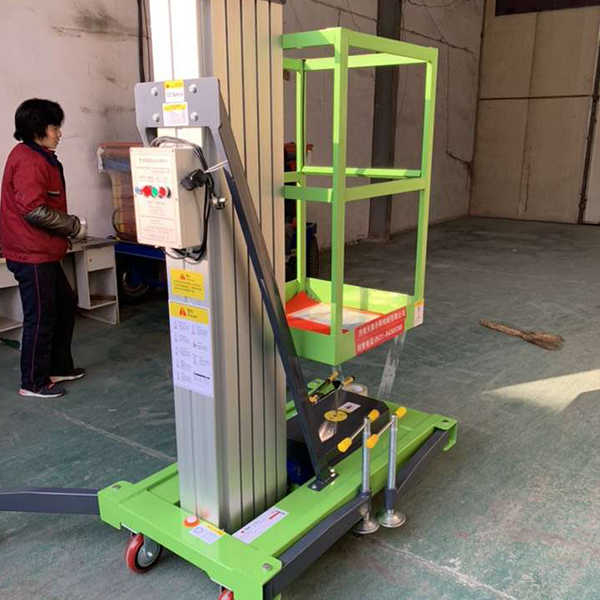

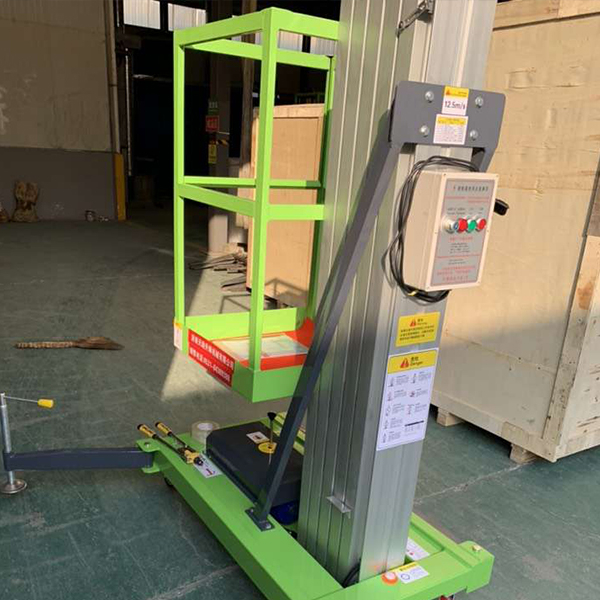

4. Detail picture


1. Ground control panel, if finish work, you can lock this machine.


2.high quality limit switch: protect operator from hurting.


3.Handle: easy to move

5. Application

Aluminum Alloy Telescopic Man Lift looks light, can play a maximum lifting capacity in a very small space. Widely used in factories, hotels, restaurants, railway stations, theaters, galleries and other places. For the maintenance of equipment, paint decoration, cleaning, replacement of electrical appliances


6. Deliver, shipping and serving

图片6图片7
